MAX114CNG-T

ProducentMaxim IntegratedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX114CNG-T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX114CNG-T

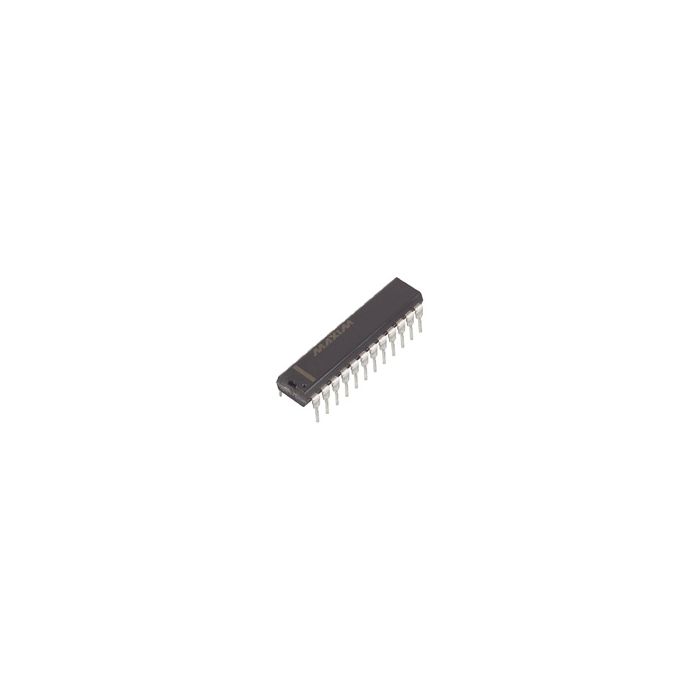

4-Channel Single ADC Semiflash 1Msps 8-bit Parallel 24-Pin PDIP N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 33
  • Inventory 2*
  • PCNs 7
  • MaskPart MAX114CNG%
  • IntroductionDate Aug 01, 1996

Parametry

  • Architecture Semiflash
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±1LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V
  • Integral Nonlinearity Error N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 70
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 1080
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) 0
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 4
  • Polarity of Input Voltage Unipolar
  • Resolution 8bit
  • Sample and Hold Yes
  • Sampling Rate 1Msps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 40
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 4-Channel Single ADC Semiflash 1Msps 8-bit Parallel 24-Pin PDIP N T/R
