MAX11254ATJ+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX11254ATJ+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX11254ATJ+T

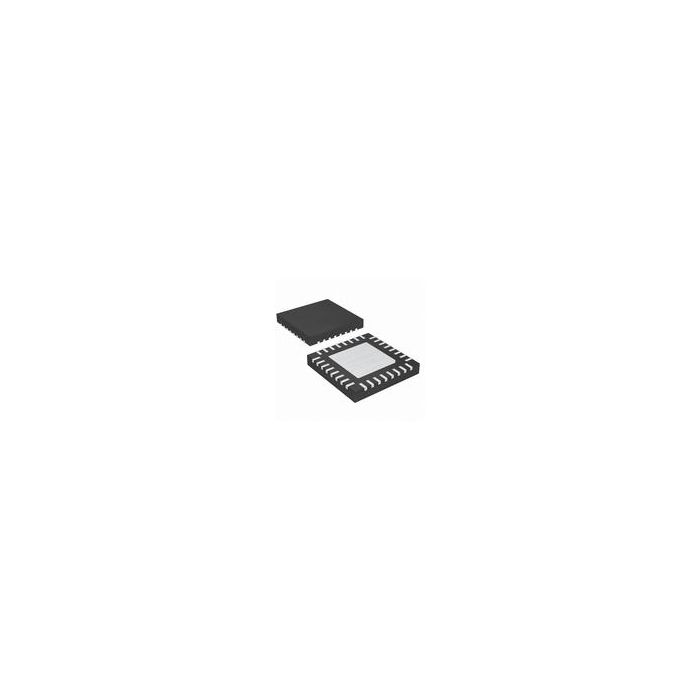

6-Channel Single ADC Delta-Sigma 64ksps 24-bit Serial 32-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 3*
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart MAX11254ATJ+%
  • IntroductionDate Apr 16, 2015

Parametry

  • Architecture Delta-Sigma
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error 2ppmFSR(Typ)
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 3.6V|±3.6V
  • Integral Nonlinearity Error 15ppm
  • Maximum Dual Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 2758.6
  • Maximum Single Supply Voltage (V) 3.6
  • Maximum Storage Temperature (°C) 150
  • Minimum Dual Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.7
  • Minimum Storage Temperature (°C) -55
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 6
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 24bit
  • Sample and Hold Yes
  • Sampling Rate 64ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Automotive
  • Typical Dual Supply Voltage (V) ±1.8
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 3.3
  • Voltage Reference External
  • Voltage Supply Source Single|Dual

Więcej informacji

Do pobrania Download
Main description 6-Channel Single ADC Delta-Sigma 64ksps 24-bit Serial 32-Pin TQFN EP T/R
