MAX1122BEGK+D

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX1122BEGK+D_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX1122BEGK+D

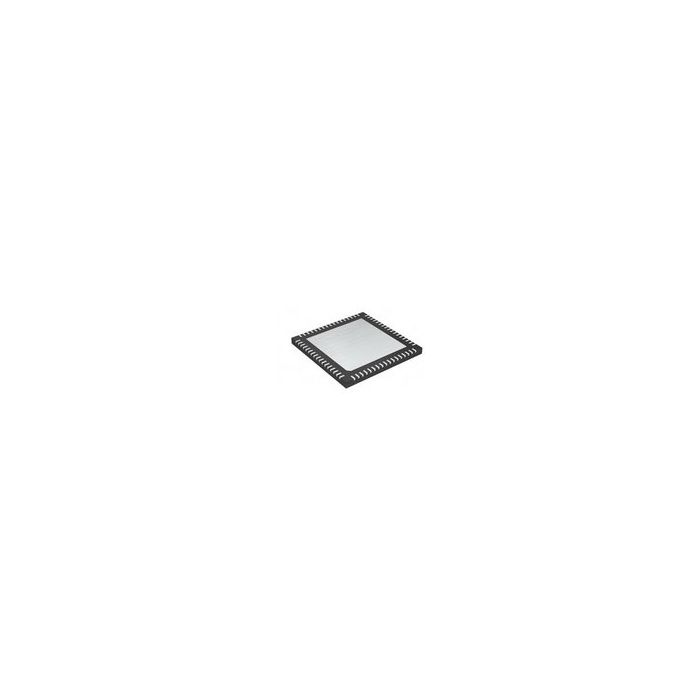

1-Channel Single ADC Pipelined 170Msps 10-bit Parallel/LVDS 68-Pin QFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 113
  • Inventory 1*
  • PCNs 7
  • MaskPart MAX1122BEGK+D%
  • IntroductionDate Jun 19, 2003

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity -1/1.5LSB
  • Digital Interface Type Parallel|LVDS
  • Digital Supply Support Yes
  • Full Scale Error N/A
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 1.25Vp-p
  • Integral Nonlinearity Error ±1.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 630
  • Maximum Single Supply Voltage (V) 1.9
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 170Msps
  • Signal to Noise Ratio 57.5dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 460
  • Typical Single Supply Voltage (V) 1.8
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 170Msps 10-bit Parallel/LVDS 68-Pin QFN EP
