MAX111BEWE+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX111BEWE+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX111BEWE+T

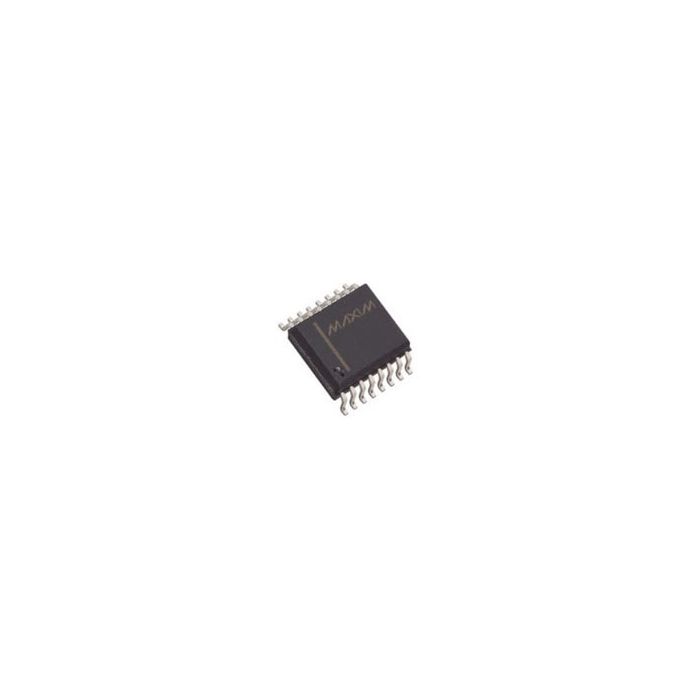

2-Channel Single ADC Delta-Sigma 50sps 14-bit Serial 16-Pin SOIC W T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 60
  • Inventory 2*
  • PCNs 9
  • GIDEP-Alerts 1
  • MaskPart MAX111BEWE+%
  • IntroductionDate Nov 01, 1998

Parametry

  • Architecture Delta-Sigma
  • Converter Type Temperature Measurement
  • Differential Input Yes
  • Differential Nonlinearity ±2LSB
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support No
  • Full Scale Error ±0.2%FSR
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage 1.5V|±1.5V
  • Integral Nonlinearity Error ±0.18%FSR
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 762
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 13
  • Number of ADCs 1
  • Number of Input Channels 2
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 14bit
  • Sample and Hold No
  • Sampling Rate 50sps
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 2-Channel Single ADC Delta-Sigma 50sps 14-bit Serial 16-Pin SOIC W T/R
