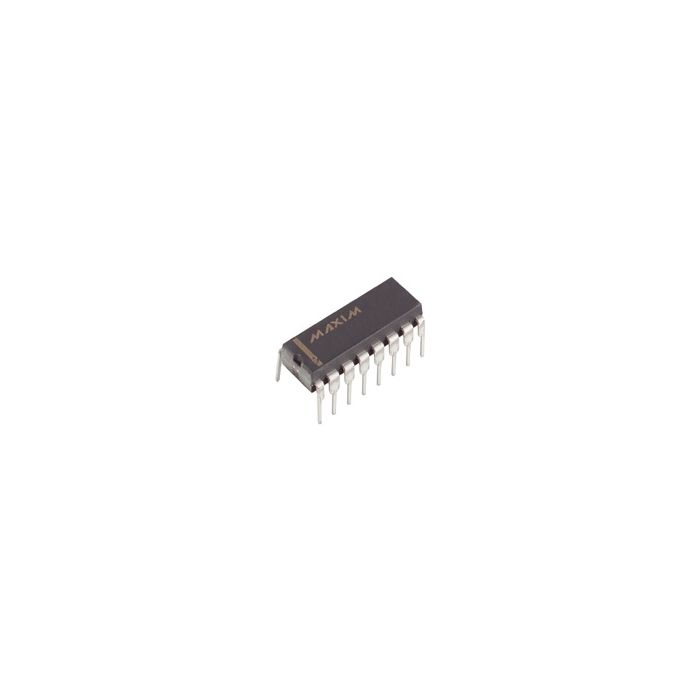

MAX111AEPE+
| Do pobrania | Download |
|---|---|
| Main description | 2-Channel Single ADC Delta-Sigma 50sps 14-bit Serial 16-Pin PDIP N |
2-Channel Single ADC Delta-Sigma 50sps 14-bit Serial 16-Pin PDIP N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 58
- PCNs 7
- MaskPart MAX111AEPE+%
- IntroductionDate Nov 01, 1998
Parametry
- Architecture Delta-Sigma
- Converter Type Temperature Measurement
- Differential Input Yes
- Differential Nonlinearity ±2LSB
- Digital Interface Type Serial (SPI, QSPI, Microwire)
- Digital Supply Support No
- Full Scale Error ±0.2%FSR
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage 1.5V|±1.5V
- Integral Nonlinearity Error ±0.1%FSR
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.25
- Maximum Power Dissipation (mW) 842
- Maximum Single Supply Voltage (V) 5.25
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 4.75
- Minimum Single Supply Voltage (V) 4.75
- No Missing Codes (bit) 13
- Number of ADCs 1
- Number of Input Channels 2
- Polarity of Input Voltage Unipolar|Bipolar
- Resolution 14bit
- Sample and Hold No
- Sampling Rate 50sps
- Signal to Noise Ratio N/A
- Single-Ended Input No
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 5
- Voltage Reference External
- Voltage Supply Source Single
