MAX11111ATB+
| Do pobrania | Download |
|---|---|

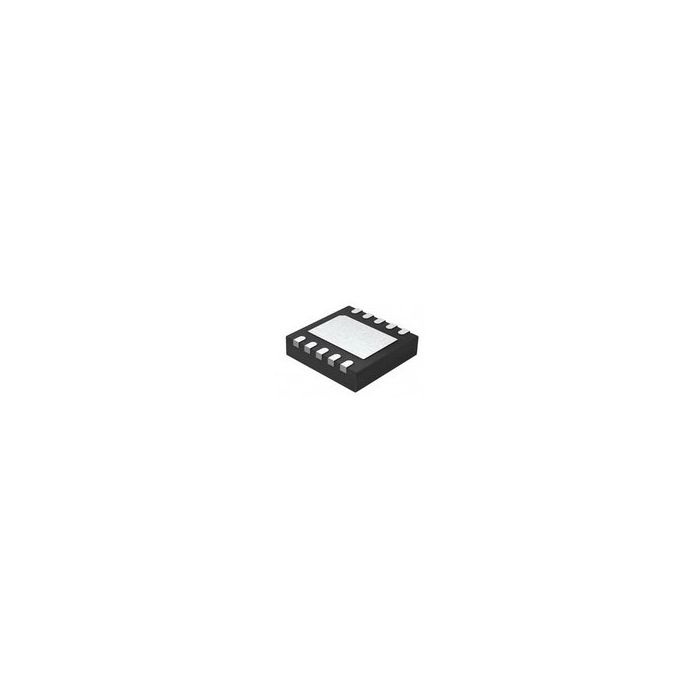

| Main description | 2-Channel Single ADC SAR 3Msps 8-bit Serial Automotive 10-Pin TDFN EP |
2-Channel Single ADC SAR 3Msps 8-bit Serial Automotive 10-Pin TDFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 6
- Inventory 1
- PCNs 7
- MaskPart MAX11111ATB+%
- IntroductionDate Apr 01, 2010
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input No
- Differential Nonlinearity ±0.15LSB
- Digital Interface Type Serial (3-Wire, SPI, QSPI, Microwire)
- Digital Supply Support No
- Full Scale Error ±0.2LSB
- Input Signal Type Single-Ended
- Input Type Voltage
- Input Voltage 2.5V
- Integral Nonlinearity Error ±0.15LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) 1951
- Maximum Single Supply Voltage (V) 3.6
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.2
- Minimum Storage Temperature (°C) -65
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 2
- Polarity of Input Voltage Unipolar
- Resolution 8bit
- Sample and Hold Yes
- Sampling Rate 3Msps
- Signal to Noise Ratio 49.8dB(Typ)
- Single-Ended Input Yes
- Supplier Temperature Grade Automotive
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 3
- Voltage Reference External
- Voltage Supply Source Single
