MAX11100EUB+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX11100EUB+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX11100EUB+T

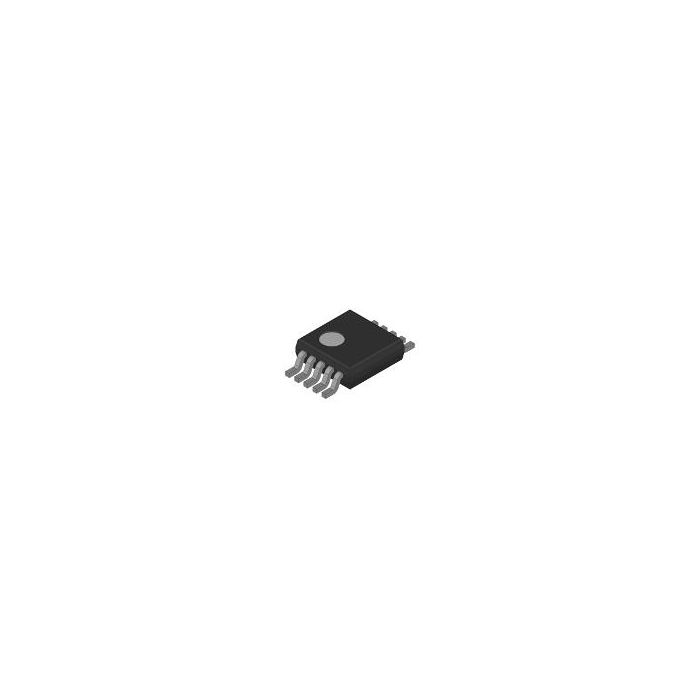

1-Channel Single ADC SAR 200ksps 16-bit Serial 10-Pin uMAX T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 908
  • Inventory 2
  • PCNs 8
  • GIDEP-Alerts 1
  • MaskPart MAX11100EUB+%
  • IntroductionDate Sep 01, 2011

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity -1/2LSB
  • Digital Interface Type Serial (SPI, QSPI, Microwire)
  • Digital Supply Support Yes
  • Full Scale Error ±0.01%FSR
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 4.096V
  • Integral Nonlinearity Error ±2LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 444
  • Maximum Single Supply Voltage (V) 5.25
  • Maximum Storage Temperature (°C) 150
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.75
  • Minimum Storage Temperature (°C) -65
  • No Missing Codes (bit) 16
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar
  • Resolution 16bit
  • Sample and Hold Yes
  • Sampling Rate 200ksps
  • Signal to Noise Ratio 91.7dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Extended
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 200ksps 16-bit Serial 10-Pin uMAX T/R
