MAX1090BEEI+T
| Do pobrania | Download |
|---|---|

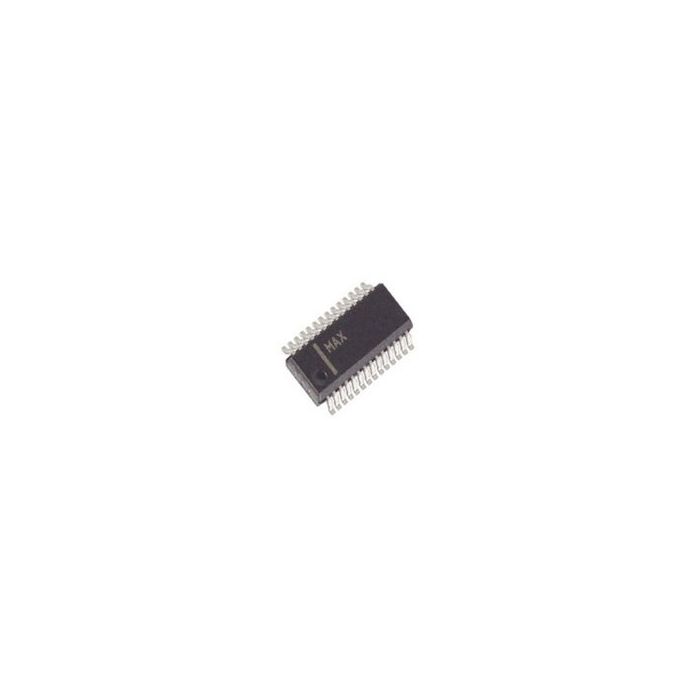

| Main description | 8-Channel Single ADC SAR 400ksps 10-bit Parallel 28-Pin QSOP T/R |
8-Channel Single ADC SAR 400ksps 10-bit Parallel 28-Pin QSOP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 64
- Inventory 1*
- PCNs 7
- MaskPart MAX1090BEEI+%
- IntroductionDate Jan 01, 2000
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Parallel
- Digital Supply Support No
- Full Scale Error ±2LSB
- Input Signal Type Single-Ended|Pseudo-Differential
- Input Type Voltage
- Input Voltage 2.5V|±1.25V
- Integral Nonlinearity Error ±1LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.5/5.8
- Maximum Power Dissipation (mW) 667
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 4.5/2.7
- Minimum Single Supply Voltage (V) 4.5
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 8|4
- Polarity of Input Voltage Unipolar|Bipolar
- Resolution 10bit
- Sample and Hold Yes
- Sampling Rate 400ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 11
- Typical Single Supply Voltage (V) 5
- Voltage Reference Internal|External
- Voltage Supply Source Single
