M74VHC1G132DTT1G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
M74VHC1G132DTT1G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / M74VHC1G132DTT1G

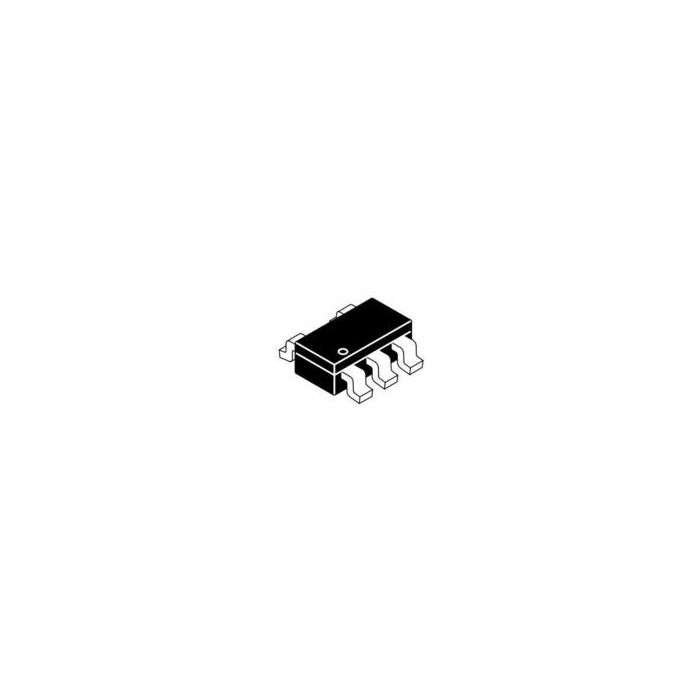

NAND Gate 1-Element 2-IN CMOS 5-Pin TSOP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • Inventory 8
  • PCNs 22
  • GIDEP-Alerts 1
  • MaskPart M74VHC1G132DT%G
  • IntroductionDate Feb 11, 2000
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=M74VHC1G132DTT1G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 19.6
  • Input Type Schmitt Trigger
  • Logic Family VHC
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -8
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 15.4@3.3V|9.7@5V
  • Maximum Quiescent Current (uA) 1
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -55
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 1
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 1-Element 2-IN CMOS 5-Pin TSOP T/R
