M74HC14YRM13TR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
M74HC14YRM13TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / M74HC14YRM13TR

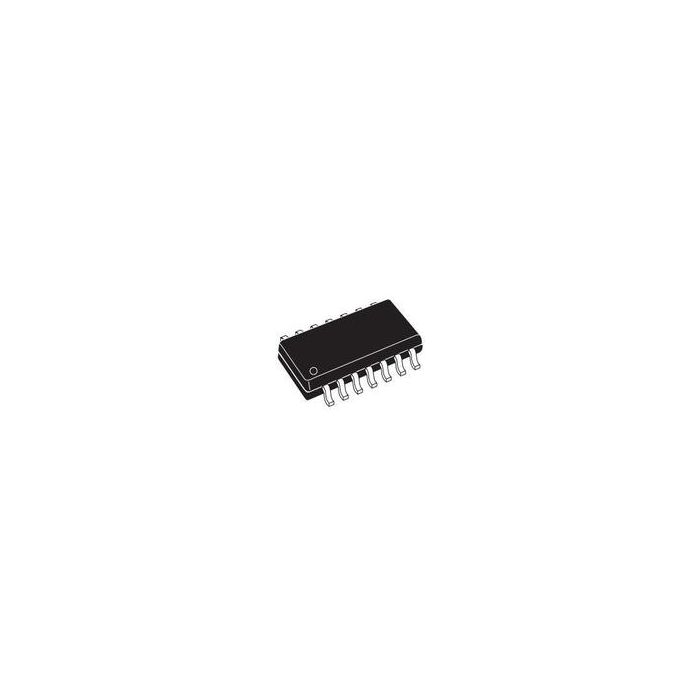

Inverter Schmitt Trigger 6-Element CMOS Automotive 14-Pin SO T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 91
  • Inventory 5
  • PCNs 14
  • MaskPart M74HC14YRM13%

Parametry

  • Absolute Propagation Delay Time (ns) 190
  • Input Type Schmitt Trigger
  • Logic Family HC
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 125@2V|25@4.5V|21@6V
  • Maximum Quiescent Current (uA) 1
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -55
  • Number of Elements per Chip 6
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 6-Element CMOS Automotive 14-Pin SO T/R
