M54HC4066KG
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Quad SPST 14-Pin CFPAK T/R |

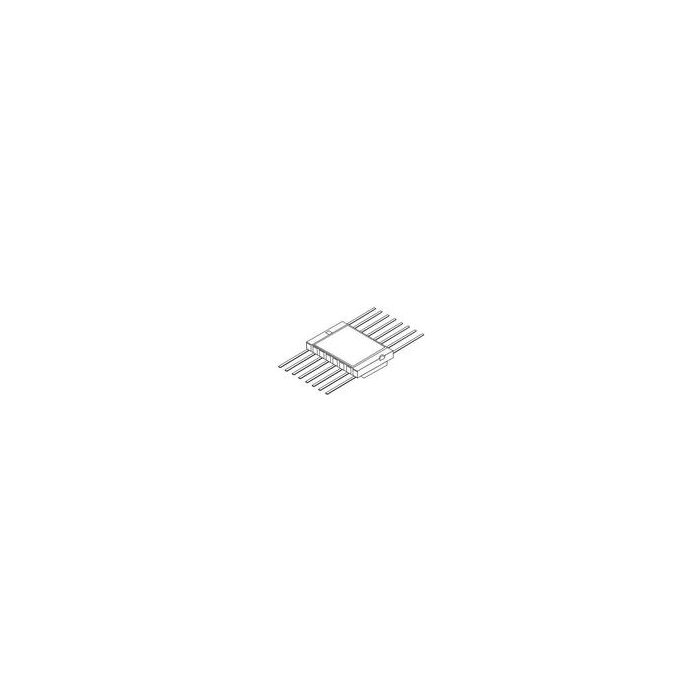

Analog Switch Quad SPST 14-Pin CFPAK T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 6
- PCNs 11
- MaskPart M54HC4066KG%
Parametry
- Chip Enable Signals Yes
- Configuration Quad SPST
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) N/A
- Maximum On Resistance Range (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 8(Typ)
- Maximum Single Supply Voltage (V) 6
- Maximum Storage Temperature (°C) N/A
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Minimum Storage Temperature (°C) N/A
- Multiplexer Architecture N/R
- Number of Channels per Chip 4
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture SPST
- Switch Control Logic N/A
- Switch Normal Position N/A
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
