M54HC4053KG

Więcej informacji
Do pobrania	Download

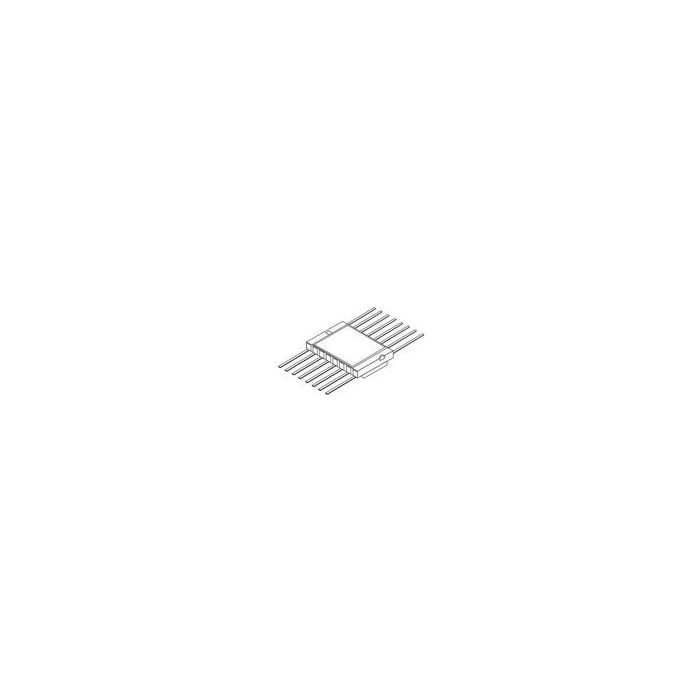

Main description	Analog Multiplexer Triple 2:1 16-Pin CFPAK T/R

Analog Multiplexer Triple 2:1 16-Pin CFPAK T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Triple 2:1
Function General
Input Signal Type Single
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) ±6
Maximum Frequency (25°C) @ Vcc (MHz) 120(Typ)@±2.25V|190(Typ)@±4.5V|200(Typ)@±6V
Maximum High Level Output Current (mA) 25
Maximum Low Level Output Current (mA) 25
Maximum On Resistance (Ohm) 180@4.5V
Maximum On Resistance Range (Ohm) 150 to 250
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) 300
Maximum Propagation Delay Bus to Bus (ns) 4(Typ)@±4.5V|10@6V|12@4.5V|60@2V
Maximum Single Supply Voltage (V) 6
Maximum Supply Current (mA) N/A
Maximum Turn-Off Time (ns) 225@2V
Maximum Turn-On Time (ns) 225@2V
Minimum Dual Supply Voltage (V) ±1
Minimum Operating Temperature (°C) -55
Minimum Single Supply Voltage (V) 2
Multiplexer Architecture 2:1
Number of Channels per Chip 3
Number of Inputs per Chip 6
Number of Outputs per Chip 3
Output Signal Type Single
Polarity N/A
Power Supply Type Single|Dual
Propagation Delay Test Condition (pF) 50
Special Features Level Shifting
Supplier Temperature Grade N/A
Switch Architecture N/R
Switch Control Logic N/R
Switch Normal Position N/R
Type Analog Multiplexer
Typical Dual Supply Voltage (V) ±3|±5
Typical Single Supply Voltage (V) 3|5
Typical Supply Current (mA) N/A
