M54HC4051KT
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 8:1 16-Pin CFPAK T/R |

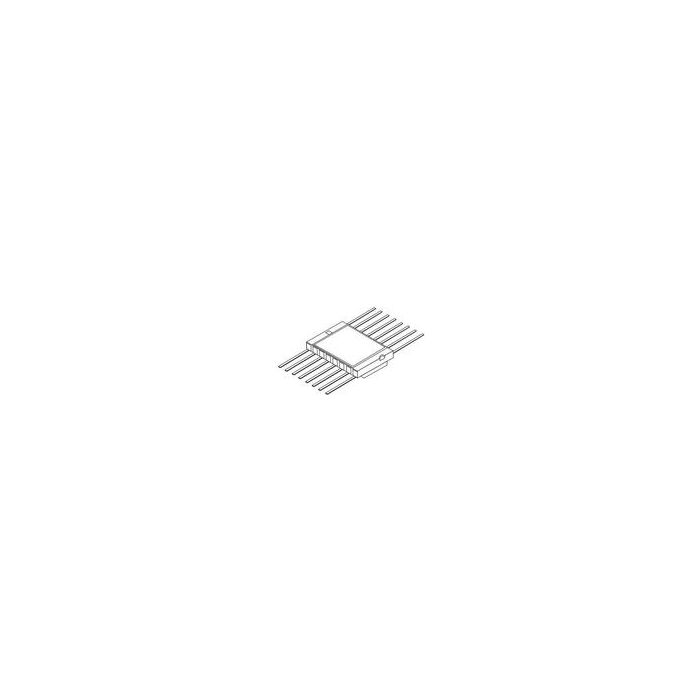

Analog Multiplexer Single 8:1 16-Pin CFPAK T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 26
- PCNs 11
- MaskPart M54HC4051K%
Parametry
- Chip Enable Signals No
- Configuration Single 8:1
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) N/A
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) N/A
- Maximum On Resistance Range (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) 8(Typ)
- Maximum Single Supply Voltage (V) 6
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) N/A
- Maximum Turn-On Time (ns) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture 8:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
