M54HC132K1

ProducentSTMicroelectronicsEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
M54HC132K1_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / M54HC132K1

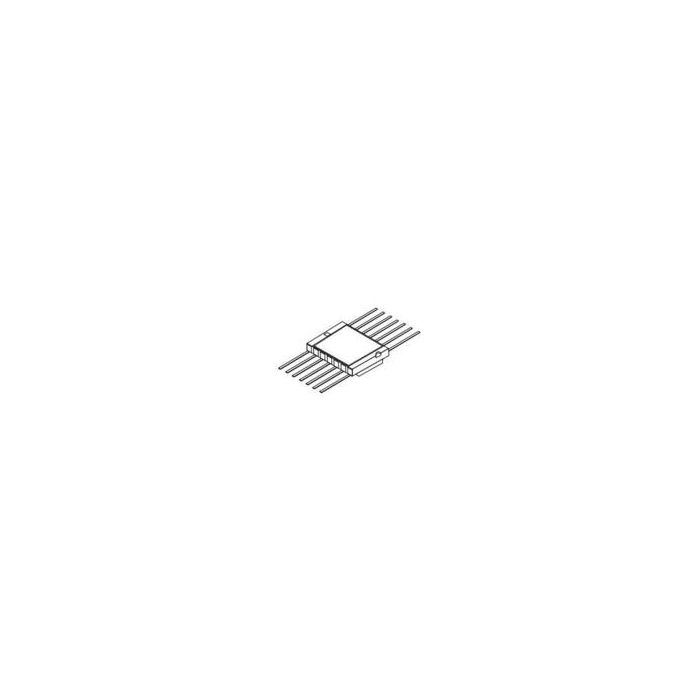

NAND Gate 4-Element 2-IN CMOS 14-Pin FPC T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 8
  • PCNs 12
  • MaskPart M54HC132K1%
  • IntroductionDate Aug 15, 1995

Parametry

  • Absolute Propagation Delay Time (ns) 160
  • Input Type Schmitt Trigger
  • Logic Family HC
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 105@2V|21@4.5V|18@6V
  • Maximum Quiescent Current (uA) 1
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -55
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 4-Element 2-IN CMOS 14-Pin FPC T/R
