M48T08-100PC1

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
M48T08-100PC1_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / M48T08-100PC1

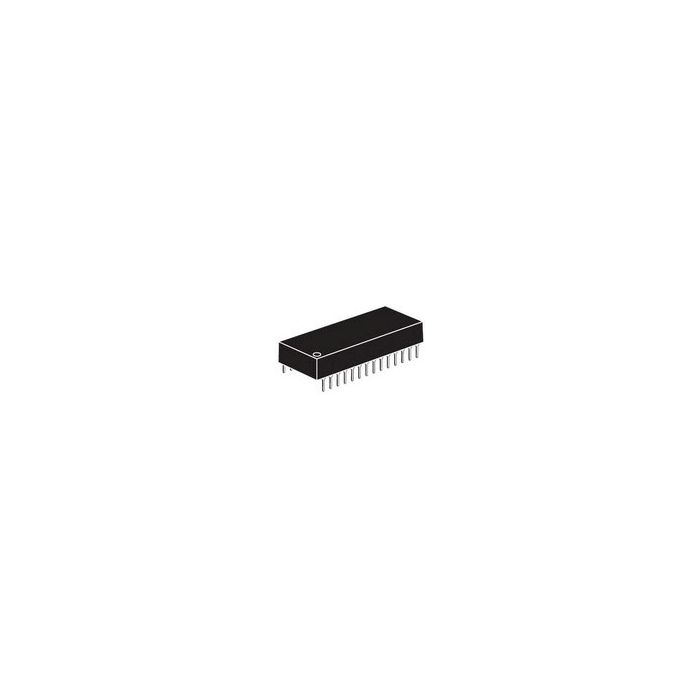

Real Time Clock Parallel 8Kbyte Clock/Calendar/NV Timekeeping RAM/Battery Backup 28-Pin PCDIP Tube

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 55
  • Inventory 6
  • PCNs 22
  • MaskPart M48T08100PC1%
  • IntroductionDate Nov 01, 1994

Parametry

  • Bus Type Parallel
  • Date Format DW:DM:M:Y
  • Function Clock/Calendar/NV Timekeeping RAM/Battery Backup
  • Maximum Access Time (ns) 100
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 1000
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Supplier Temperature Grade Commercial
  • Time Format HH:MM:SS
  • Typical Operating Supply Voltage (V) 5
  • User RAM (byte) 8192

Więcej informacji

Do pobrania Download
Main description Real Time Clock Parallel 8Kbyte Clock/Calendar/NV Timekeeping RAM/Battery Backup 28-Pin PCDIP Tube
