M27W401-80B6E

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
M27W401-80B6E_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / M27W401-80B6E

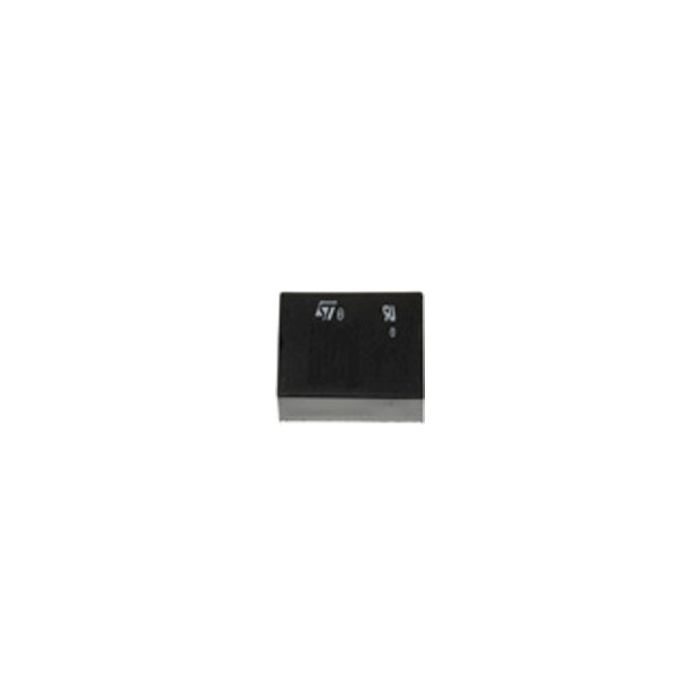

EPROM OTP 4M-bit 512K x 8 80ns 32-Pin PDIP Tube

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 26
  • PCNs 12
  • MaskPart M27W40180B6E%
  • IntroductionDate Jul 01, 1999

Parametry

  • Density (bit) 4M
  • In-System Programmability External
  • Interface Type Parallel
  • Maximum Access Time (ns) 80
  • Maximum Operating Current (mA) 50
  • Maximum Operating Frequency (MHz) N/R
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Operating Supply Voltage (V) 3.3
  • Organization 512Kx8
  • Output Enable Access Time (ns) 50
  • Programmability Yes
  • Programming Voltage (V) 12.75
  • Reprogramming Technique OTP
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description EPROM OTP 4M-bit 512K x 8 80ns 32-Pin PDIP Tube
