M24C08-DRMF3TG/K

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
M24C08-DRMF3TG_K_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / M24C08-DRMF3TG/K

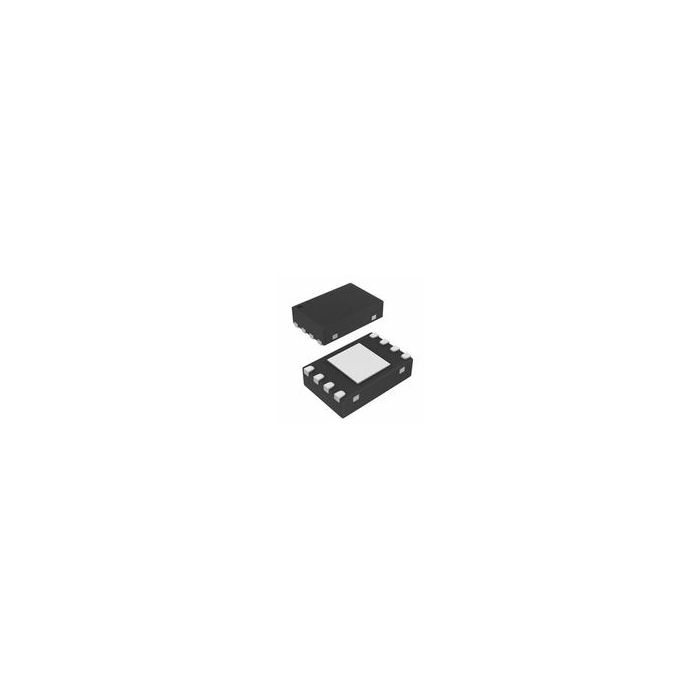

EEPROM Serial-I2C 8K-bit 1K x 8 2.5V/3.3V/5V Automotive 8-Pin WFDFPN EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 98
  • Inventory 2
  • PCNs 16
  • MaskPart M24C08DRMF3%GK

Parametry

  • Address Bus Width (bit) N/A
  • Data Retention (Year) 100
  • Density (bit) 8K
  • Density in Bits (bit) 8192
  • Hardware Data Protection Yes
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 450
  • Maximum Operating Current (mA) 2
  • Maximum Operating Frequency (MHz) 1
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 1Kx8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Extended
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 8K-bit 1K x 8 2.5V/3.3V/5V Automotive 8-Pin WFDFPN EP T/R
