LTC6957HMS-2#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC6957HMS-2#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC6957HMS-2#TRPBF

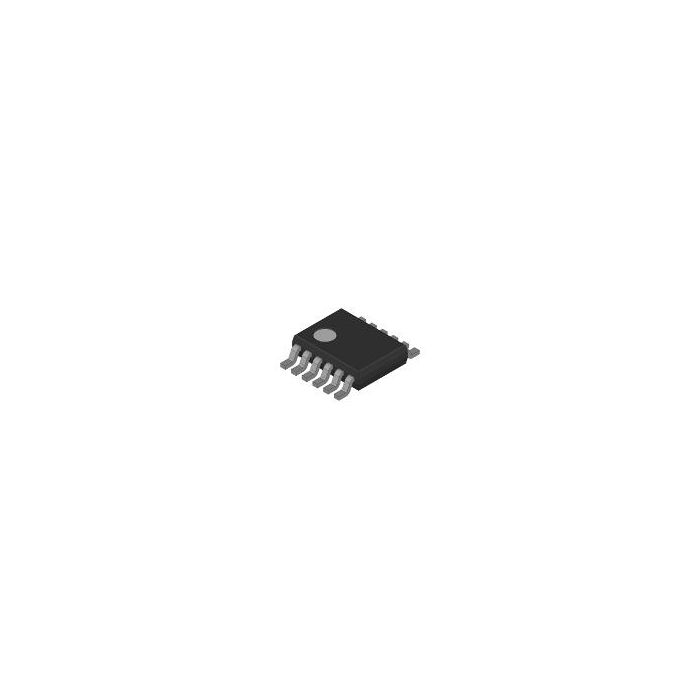

Clock Fanout Buffer 2-OUT 1-IN 1:2 12-Pin MSOP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 273
  • Inventory 4*
  • PCNs 9
  • MaskPart LTC6957HMS2#%PBF

Parametry

  • Absolute Propagation Delay Time (ns) 4.4
  • Configuration N/R
  • Fanout 1:2
  • Input Logic Level N/A
  • Input Signal Type Differential
  • Maximum Data Rate (Gbps) N/A
  • Maximum Duty Cycle N/A
  • Maximum Input Frequency (MHz) 300
  • Maximum Operating Supply Voltage (V) 3.45
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Frequency (MHz) 300
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 4.4@3.15V to 3.45V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3.15
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Clock Inputs 1
  • Number of Outputs per Chip 2
  • Output Logic Level LVDS
  • Power Supply Type Single
  • Spread Spectrum No
  • Supplier Temperature Grade Automotive
  • Type Fanout Buffer
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Clock Fanout Buffer 2-OUT 1-IN 1:2 12-Pin MSOP T/R
