LTC6802IG-2#3ZZPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC6802IG-2#3ZZPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC6802IG-2#3ZZPBF

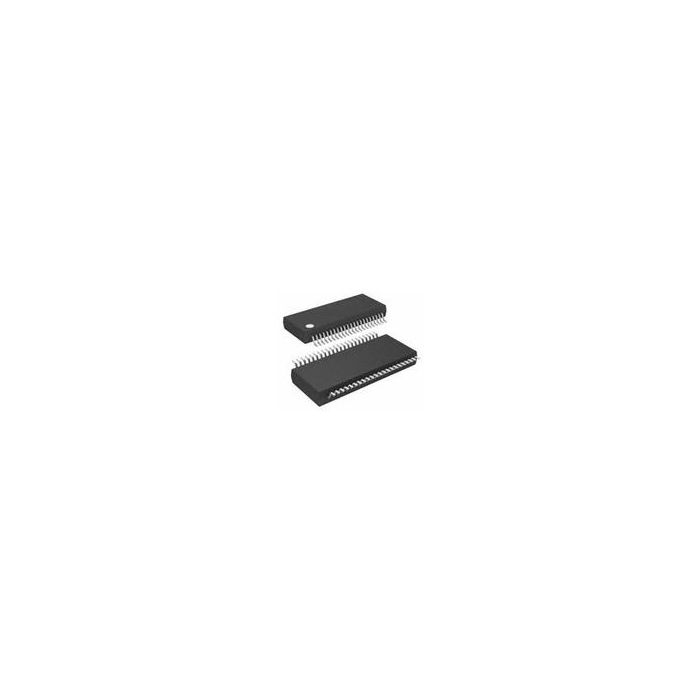

Battery Stack Monitor Li-Ion Automotive 44-Pin SSOP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 12
  • Inventory 2
  • PCNs 10
  • MaskPart LTC6802IG2#3ZZPBF%

Parametry

  • Battery Type Li-Ion
  • Maximum Operating Supply Voltage (V) 50
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 1.1
  • Minimum Operating Supply Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) 4 to 50
  • Output Current (mA) N/A
  • Output Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Type Battery Stack Monitor
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Battery Stack Monitor Li-Ion Automotive 44-Pin SSOP Tube
