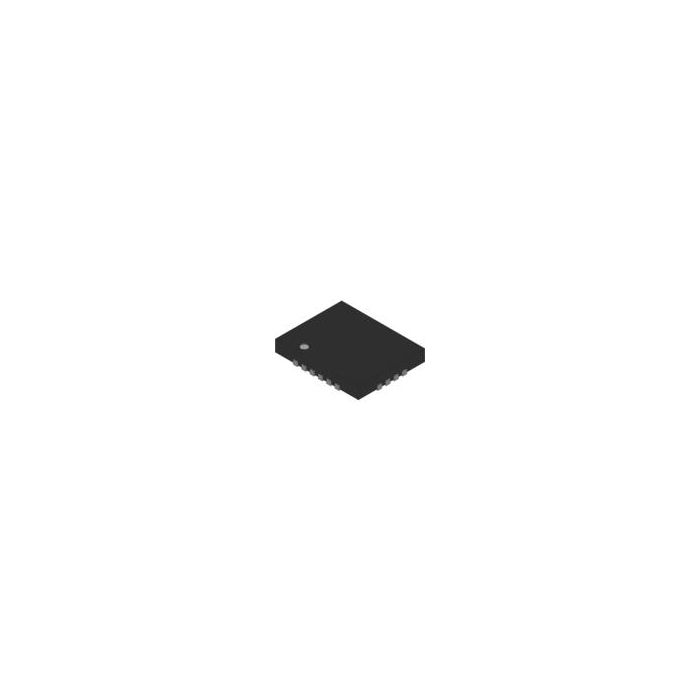

LTC6421IUDC-20#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC6421IUDC-20#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC6421IUDC-20#TRPBF

SP Amp Differential ADC Driver Dual R-R O/P 3.5V 20-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • Inventory 1
  • PCNs 9
  • MaskPart LTC6421IUDC20#PBF%
  • IntroductionDate Mar 24, 2008

Parametry

  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) 2@3V@-40C to 85C
  • Maximum Input Resistance (MOhm) 0.00023@3V@-40C to 85C
  • Maximum Operating Supply Voltage (V) 3.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Single Supply Voltage (V) 3.5
  • Maximum Supply Current (mA) 100@3V@-40C to 85C
  • Maximum Supply Voltage Range (V)
  • Maximum Voltage Gain (dB) N/A
  • Maximum Voltage Gain Range (dB) N/A
  • Minimum CMRR (dB) 45
  • Minimum CMRR Range (dB)
  • Minimum DC Continuous Isolation Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) 55
  • Minimum Single Supply Voltage (V) 2.85
  • Number of Channels per Chip 2
  • Number of Elements per Chip 2
  • Output Type N/A
  • Power Supply Type Single
  • Rail to Rail Rail to Rail Output
  • Supplier Temperature Grade Industrial
  • Type Differential ADC Driver
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Current (mA) 10(Min)@3V@-40C to 85C
  • Typical Single Supply Voltage (V) 3

Więcej informacji

Do pobrania Download
Main description SP Amp Differential ADC Driver Dual R-R O/P 3.5V 20-Pin QFN EP T/R
