LTC6421CUDC-20#PBF
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- LTC6421CUDC-20#PBF_ANALOG_DEVICES
0,00 zł
Opis / LTC6421CUDC-20#PBF

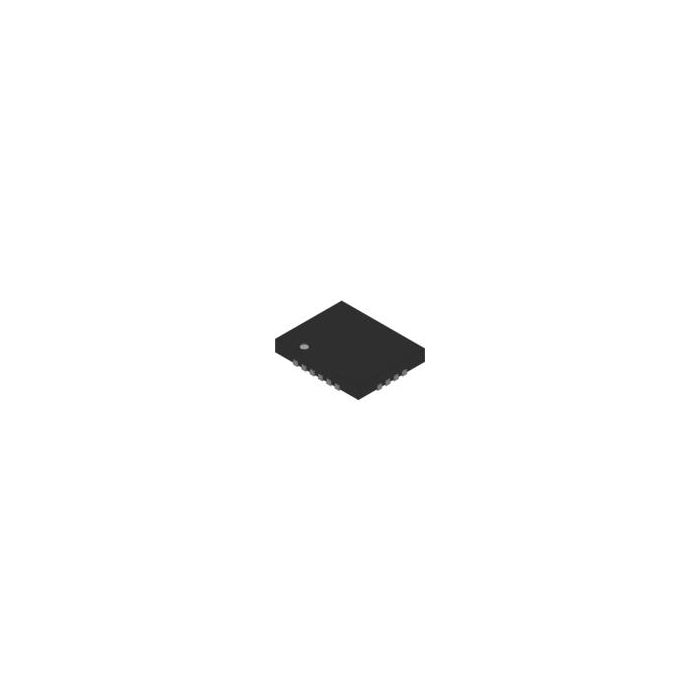

SP Amp Differential ADC Driver Dual R-R O/P 3.5V 20-Pin QFN EP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- PCNs 9
- MaskPart LTC6421CUDC20#PBF%
- IntroductionDate Mar 24, 2008
Parametry
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) 2@3V@0C to 70C
- Maximum Input Resistance (MOhm) 0.00023@3V@0C to 70C
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 3.5
- Maximum Supply Current (mA) 100@3V@0C to 70C
- Maximum Supply Voltage Range (V)
- Maximum Voltage Gain (dB) N/A
- Maximum Voltage Gain Range (dB) N/A
- Minimum CMRR (dB) 45
- Minimum CMRR Range (dB)
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 55
- Minimum Single Supply Voltage (V) 2.85
- Number of Channels per Chip 2
- Number of Elements per Chip 2
- Output Type N/A
- Power Supply Type Single
- Rail to Rail Rail to Rail Output
- Supplier Temperature Grade Commercial
- Type Differential ADC Driver
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) 10(Min)@3V@0C to 70C
- Typical Single Supply Voltage (V) 3
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | SP Amp Differential ADC Driver Dual R-R O/P 3.5V 20-Pin QFN EP Tube |
