LTC4449EDCB#TRMPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC4449EDCB#TRMPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC4449EDCB#TRMPBF

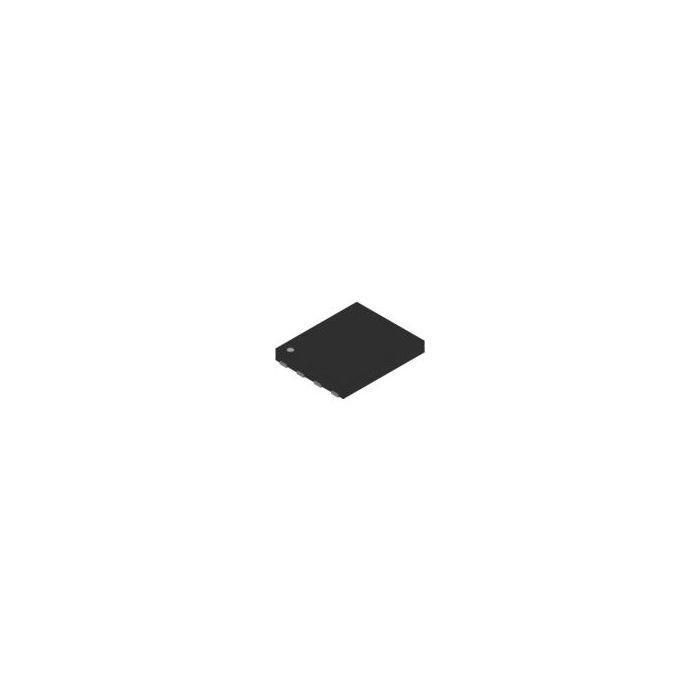

Driver 4.5A 2-OUT High and Low Side Inv/Non-Inv 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 195
  • Inventory 5
  • PCNs 9
  • MaskPart LTC4449EDCB#PBF%
  • IntroductionDate Jan 12, 2010

Parametry

  • Absolute Propagation Delay Time (ns) 14(Typ)
  • Bridge Type N/A
  • Driver Configuration Inverting|Non-Inverting
  • Driver Type High and Low Side
  • High and Low Sides Dependency Synchronous
  • Input Logic Compatibility N/A
  • Maximum Fall Time (ns) 7(Typ)
  • Maximum Operating Frequency (kHz) N/A
  • Maximum Operating Supply Voltage (V) 6.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) 14(Typ)
  • Maximum Rise Time (ns) 8(Typ)
  • Maximum Supply Current (mA) 0.4
  • Maximum Turn-Off Delay Time (ns) N/A
  • Maximum Turn-On Delay Time (ns) N/A
  • Minimum Operating Supply Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Number of Drivers 2
  • Number of Outputs 2
  • Output Resistance (Ohm) N/A
  • Peak Output Current (A) 4.5(Typ)
  • Reference Voltage (V) N/A
  • Special Features Under Voltage Lockout
  • Supplier Temperature Grade Extended
  • Type MOSFET
  • Typical Input High Threshold Voltage (V) 3.5
  • Typical Input Low Threshold Voltage (V) 3.25
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Driver 4.5A 2-OUT High and Low Side Inv/Non-Inv 8-Pin DFN EP T/R
