LTC4008EGN-1#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC4008EGN-1#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC4008EGN-1#TRPBF

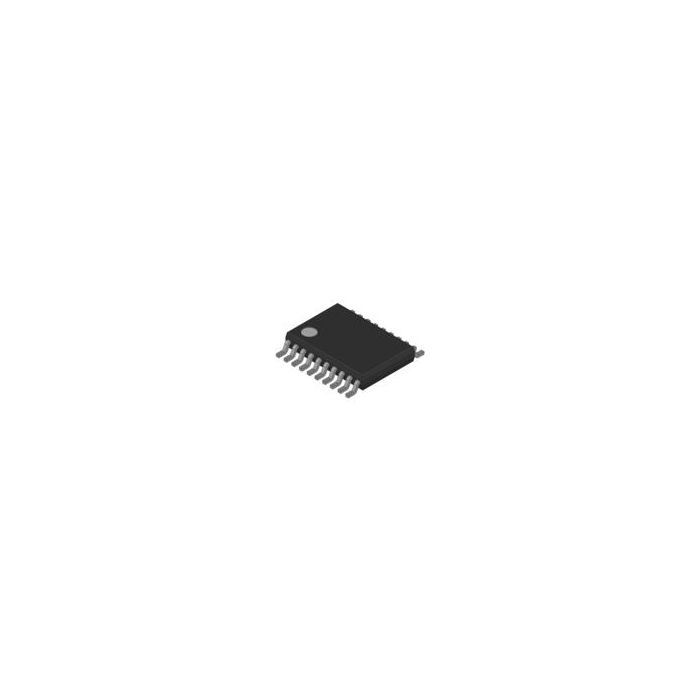

Switching Battery Charger 4000mA 3V to 28V 20-Pin SSOP N T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 70
  • Inventory 2*
  • PCNs 9
  • MaskPart LTC4008EGN1#%PBF
  • IntroductionDate Jan 10, 2003

Parametry

  • Battery Type N/A
  • Maximum Operating Supply Voltage (V) 28
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 6
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) N/A
  • Output Current (mA) 4000(Max)
  • Output Voltage (V) 3 to 28
  • Supplier Temperature Grade Extended
  • Type Switching Battery Charger
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Switching Battery Charger 4000mA 3V to 28V 20-Pin SSOP N T/R
