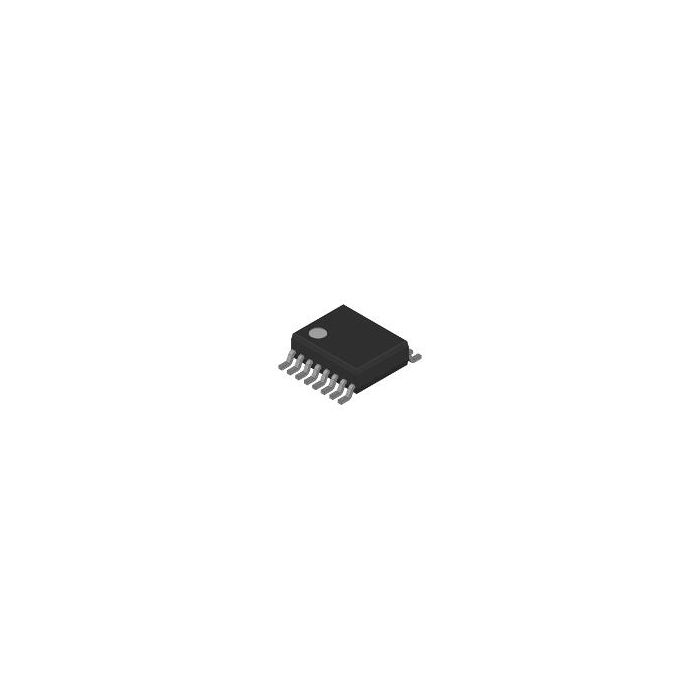

LTC3901EGN#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3901EGN#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3901EGN#TRPBF

Driver 2A 2-OUT Full Brdg Inv Automotive 16-Pin SSOP N T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 3
  • Inventory 1
  • PCNs 9
  • MaskPart LTC3901EGN#PBF%
  • IntroductionDate Nov 19, 2003

Parametry

  • Absolute Propagation Delay Time (ns) N/A
  • Bridge Type Full Bridge
  • Driver Configuration Inverting
  • Driver Type N/A
  • High and Low Sides Dependency N/R
  • Input Logic Compatibility N/A
  • Maximum Fall Time (ns) 15(Typ)
  • Maximum Operating Frequency (kHz) N/A
  • Maximum Operating Supply Voltage (V) 11
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Rise Time (ns) 15(Typ)
  • Maximum Supply Current (mA) 15
  • Maximum Turn-Off Delay Time (ns) N/A
  • Maximum Turn-On Delay Time (ns) N/A
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Drivers 2
  • Number of Outputs 2
  • Output Resistance (Ohm) 0.8|0.9
  • Peak Output Current (A) 2(Typ)
  • Reference Voltage (V) N/A
  • Special Features Synchronous
  • Supplier Temperature Grade Extended
  • Type MOSFET
  • Typical Input High Threshold Voltage (V) N/A
  • Typical Input Low Threshold Voltage (V) N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Driver 2A 2-OUT Full Brdg Inv Automotive 16-Pin SSOP N T/R
