LTC3858EUH-2#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3858EUH-2#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3858EUH-2#TRPBF

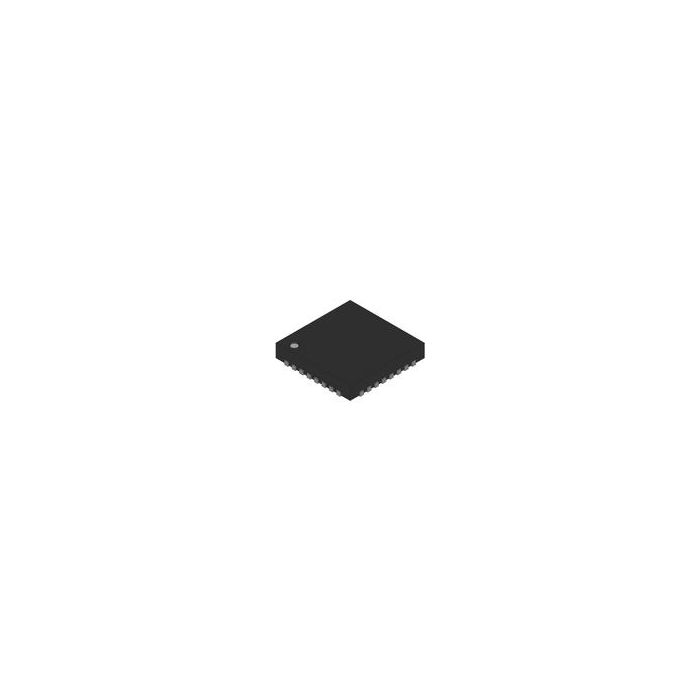

DC/DC Cntrlr Dual-OUT Step Down 900kHz Automotive 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 105
  • PCNs 9
  • MaskPart LTC3858EUH2#%PBF
  • IntroductionDate Nov 24, 2010

Parametry

  • Maximum Input Voltage (V) 38
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 2(Typ)
  • Maximum Switching Frequency (kHz) 900
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) 50
  • Number of Outputs 2
  • Operating Supply Voltage (V) 4 to 38
  • Output Voltage (V) 0.8 to 24
  • Supplier Temperature Grade Extended
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Dual-OUT Step Down 900kHz Automotive 32-Pin QFN EP T/R
