LTC3826EUH#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3826EUH#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3826EUH#TRPBF

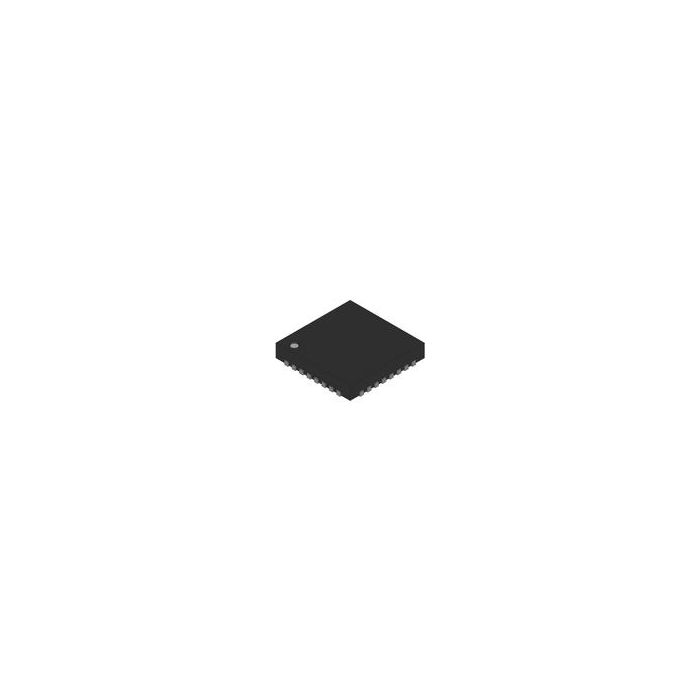

DC/DC Cntrlr Dual-OUT Step Down 585kHz Automotive 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 127
  • Inventory 3*
  • PCNs 9
  • MaskPart LTC3826EUH#%PBF
  • IntroductionDate Jul 06, 2007

Parametry

  • Control Method PWM
  • Maximum Input Voltage (V) 36
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 125
  • Maximum Supply Current (mA) 0.05
  • Maximum Switching Frequency (kHz) 585
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) N/A
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) 475
  • Number of Outputs 2
  • Operating Supply Voltage (V) 4 to 36
  • Output Voltage (V) 0.8 to 10
  • Programmability No
  • Supplier Temperature Grade Extended
  • Synchronous Clock Yes
  • Synchronous Rectifier Yes
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) N/A
  • Typical Gate Driver Pull Up Resistance (Ohm) N/A
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 25|25
  • Typical Quiescent Current (mA) 0.03
  • Typical Switching Frequency (kHz) 530

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Dual-OUT Step Down 585kHz Automotive 32-Pin QFN EP T/R
