LTC3812EFE-5#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3812EFE-5#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3812EFE-5#TRPBF

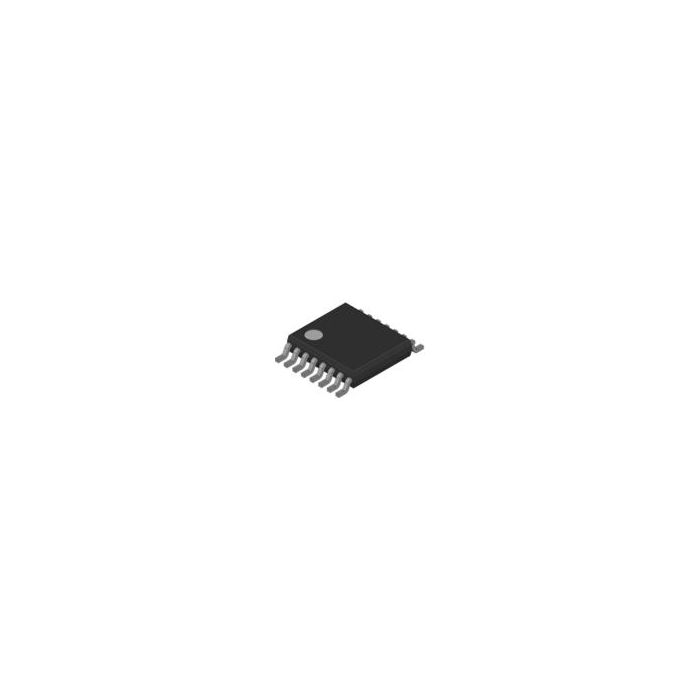

DC/DC Cntrlr Single-OUT Step Down 1000kHz Automotive 16-Pin TSSOP EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 113
  • Inventory 5*
  • PCNs 10
  • MaskPart LTC3812EFE5#%PBF
  • IntroductionDate Apr 16, 2007

Parametry

  • Maximum Input Voltage (V) 60
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 6
  • Maximum Switching Frequency (kHz) 1000
  • Minimum Input Voltage (V) 6.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Switching Frequency (kHz) 100
  • Number of Outputs 1
  • Operating Supply Voltage (V) 60(Max)
  • Output Voltage (V) 0.8 to 55.8
  • Supplier Temperature Grade Extended
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 1

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 1000kHz Automotive 16-Pin TSSOP EP T/R
