LTC3770EUH#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3770EUH#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3770EUH#TRPBF

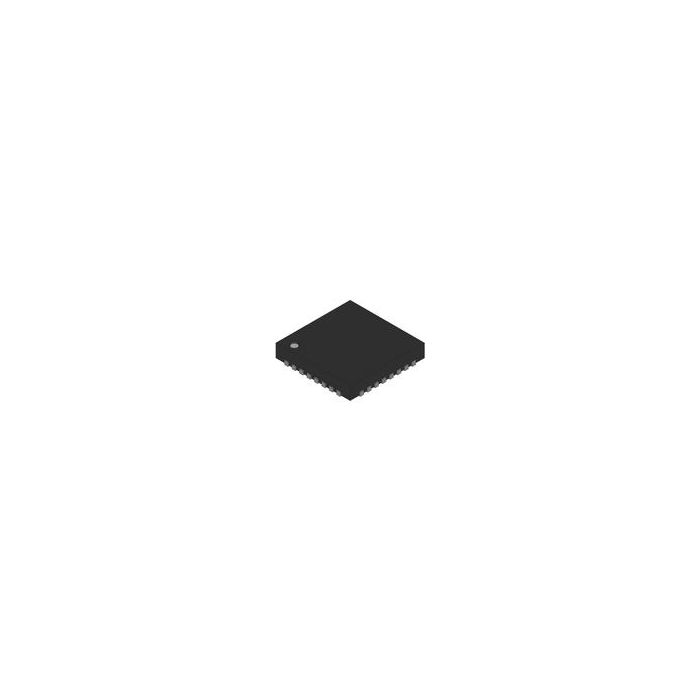

DC/DC Cntrlr Single-OUT Step Down 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 148
  • Inventory 3*
  • PCNs 9
  • MaskPart LTC3770EUH#%PBF
  • IntroductionDate Dec 13, 2004

Parametry

  • Maximum Input Voltage (V) 32
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 125
  • Maximum Supply Current (mA) 2.2
  • Maximum Switching Frequency (kHz) N/A
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) -0.3 to 32
  • Output Voltage (V) 0.6(Min)
  • Supplier Temperature Grade Extended
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 1.2
  • Typical Gate Driver Pull Up Resistance (Ohm) 1.9
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 15
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 32-Pin QFN EP T/R
