LTC3731CUH#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3731CUH#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3731CUH#TRPBF

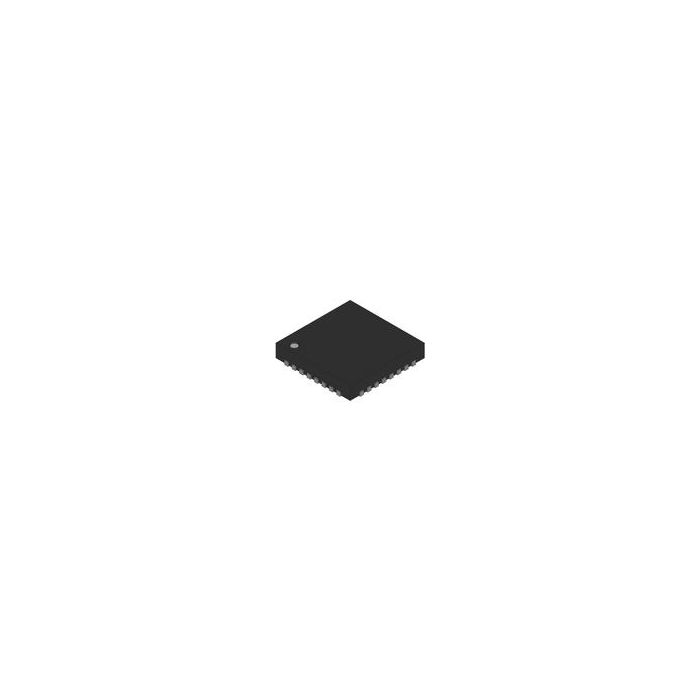

DC/DC Cntrlr Single-OUT Step Down 440kHz Automotive 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 179
  • Inventory 5*
  • PCNs 9
  • MaskPart LTC3731CUH#%PBF
  • IntroductionDate Jan 25, 2006

Parametry

  • Maximum Input Voltage (V) 36
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 125
  • Maximum Supply Current (mA) 2.3
  • Maximum Switching Frequency (kHz) 440
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) 360
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Voltage (V) 0.6 to 6
  • Supplier Temperature Grade Commercial
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) N/A
  • Typical Gate Driver Pull Up Resistance (Ohm) N/A
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 240
  • Typical Quiescent Current (mA) 2300

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 440kHz Automotive 32-Pin QFN EP T/R
