LTC3729EUH#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3729EUH#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3729EUH#PBF

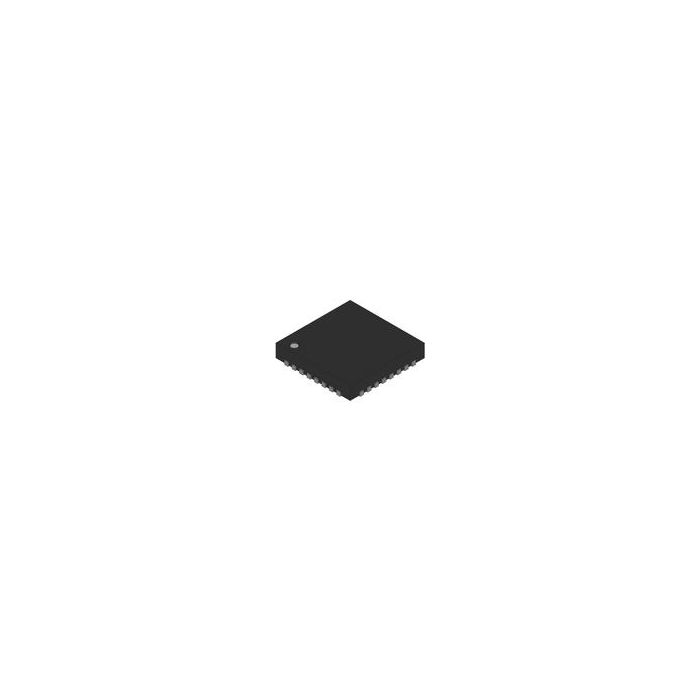

DC/DC Cntrlr Single-OUT Step Down 1100kHz 32-Pin QFN EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 179
  • Inventory 4
  • PCNs 9
  • MaskPart LTC3729EUH#PBF%
  • IntroductionDate Mar 07, 2002

Parametry

  • Maximum Input Voltage (V) 36
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 0.58(Typ)
  • Maximum Switching Frequency (kHz) 1100
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4 to 36
  • Output Voltage (V) 0.8 to 5
  • Supplier Temperature Grade Extended
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 240

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 1100kHz 32-Pin QFN EP Tube
