LTC3603EUF#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3603EUF#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3603EUF#PBF

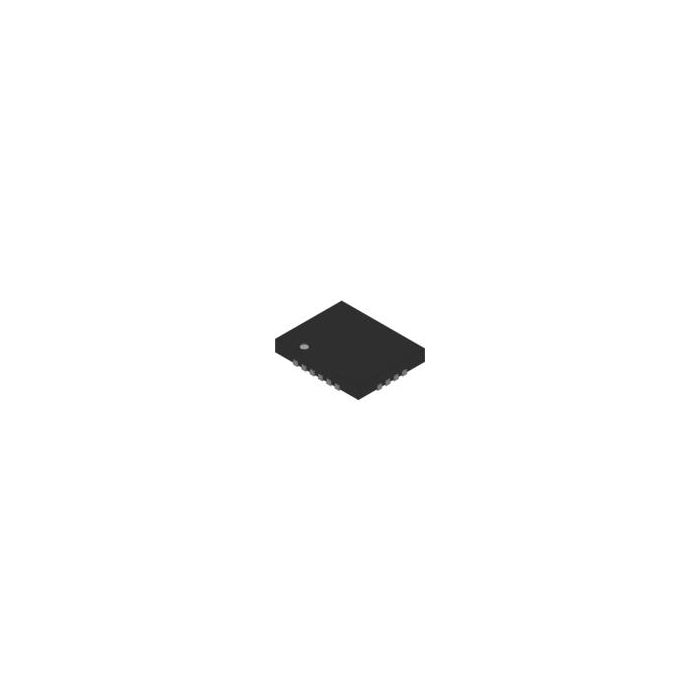

Conv DC-DC 4.5V to 15V Synchronous Step Down Single-Out 0.6V to 14.5V 2.5A 20-Pin QFN EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 55
  • Inventory 4
  • PCNs 12
  • MaskPart LTC3603EUF#PBF%
  • IntroductionDate Jan 15, 2009

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation 0.005%/V(Typ)
  • Load Regulation 0.1%
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 15
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2.5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 15
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 14.5
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 1150
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) N/A
  • Typical Switch Current (A) 4.5

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 15V Synchronous Step Down Single-Out 0.6V to 14.5V 2.5A 20-Pin QFN EP Tube
