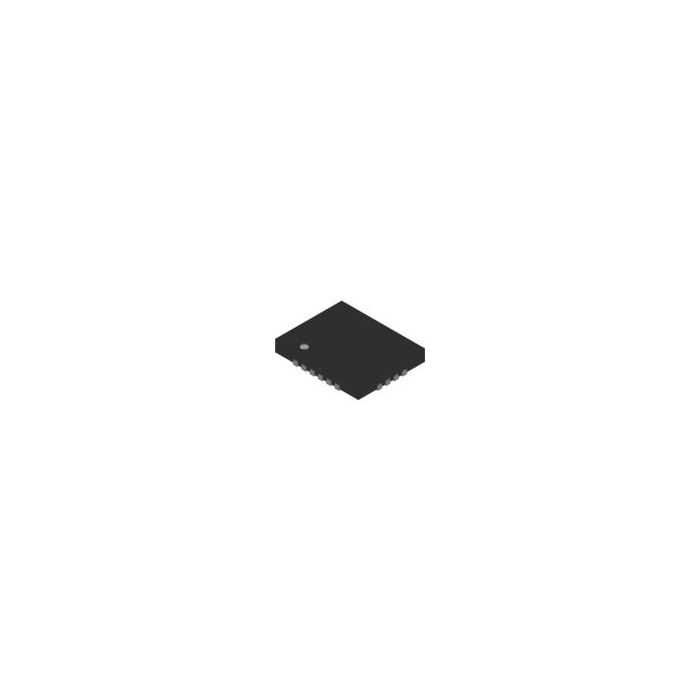

LTC3569IUD#TRPBF
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
- SKU
- LTC3569IUD#TRPBF_ANALOG_DEVICES
0,00 zł
Opis / LTC3569IUD#TRPBF
Conv DC-DC 2.5V to 5.5V Synchronous Step Down Triple-Out 0.425V to 5.5V 1.2A/0.6A/0.6A Automotive 20-Pin QFN EP T/R
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 2
- Inventory 1*
- PCNs 9
- MaskPart LTC3569IUD#%PBF
- IntroductionDate Jan 05, 2009
Parametry
- Efficiency (%) N/A
- Isolation N/A
- Line Regulation 0.2%/V
- Load Regulation 0.5%(Typ)
- Maximum High Level Output Voltage (V) N/A
- Maximum Input Voltage (V) 5.5
- Maximum Low Level Output Voltage (V) N/A
- Maximum Output Current (A) 1.2|0.6|0.6
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 125
- Minimum Input Voltage (V) 2.5
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 3
- Output Type Adjustable
- Output Voltage (V) 0.425 to 5.5
- Process Technology N/A
- Supplier Temperature Grade Industrial
- Switching Frequency (kHz) 2800
- Switching Regulator Yes
- Technology N/A
- Tradename N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Output Resistance (Ohm) N/A
- Typical Quiescent Current (uA) 0.1
- Typical Switch Current (A) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Conv DC-DC 2.5V to 5.5V Synchronous Step Down Triple-Out 0.425V to 5.5V 1.2A/0.6A/0.6A Automotive 20-Pin QFN EP T/R |
