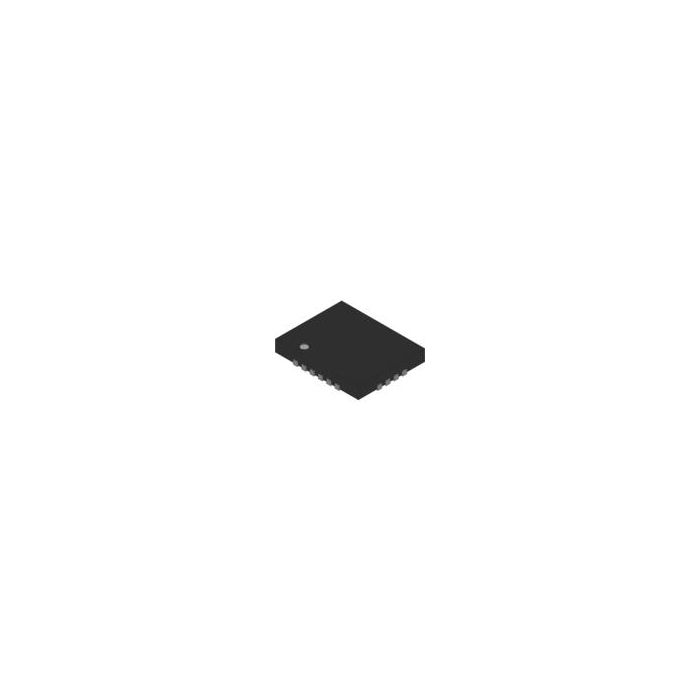

LTC3562EUD#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC3562EUD#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC3562EUD#TRPBF

Conv DC-DC 2.85V to 5.5V Synchronous Step Down Quad-Out 0.6V to 3.775V 0.4A/0.6A 20-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 10
  • Inventory 4*
  • PCNs 9
  • MaskPart LTC3562EUD#TRPBF%
  • IntroductionDate Aug 21, 2007

Parametry

  • Efficiency (%) N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.4|0.6
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.85
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 4
  • Operating Supply Voltage (V) 2.7 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 3.775
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 2590
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 100

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.85V to 5.5V Synchronous Step Down Quad-Out 0.6V to 3.775V 0.4A/0.6A 20-Pin QFN EP T/R
