LTC3412IFE#PBF
| Do pobrania | Download |
|---|---|

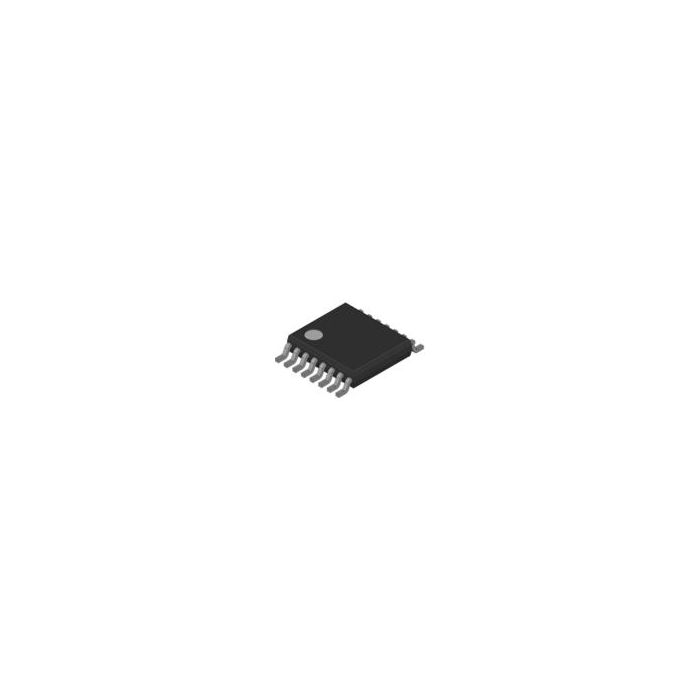

| Main description | Conv DC-DC 2.625V to 5.5V Synchronous Step Down Single-Out 0.8V to 5V 2.5A 16-Pin TSSOP EP Tube |
Conv DC-DC 2.625V to 5.5V Synchronous Step Down Single-Out 0.8V to 5V 2.5A 16-Pin TSSOP EP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 335
- Inventory 5
- PCNs 10
- MaskPart LTC3412IFE#PBF%
- IntroductionDate Jul 12, 2002
Parametry
- Efficiency (%) 95
- Isolation N/A
- Line Regulation 0.2%/V
- Load Regulation 0.2%
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) 2.5
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Input Voltage (V) 2.625
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) N/A
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 0.8 to 5
- Supplier Temperature Grade Industrial
- Switching Frequency (kHz) 300 to 4000
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Quiescent Current (uA) 62
