LTC2386IUH-18#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC2386IUH-18#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC2386IUH-18#PBF

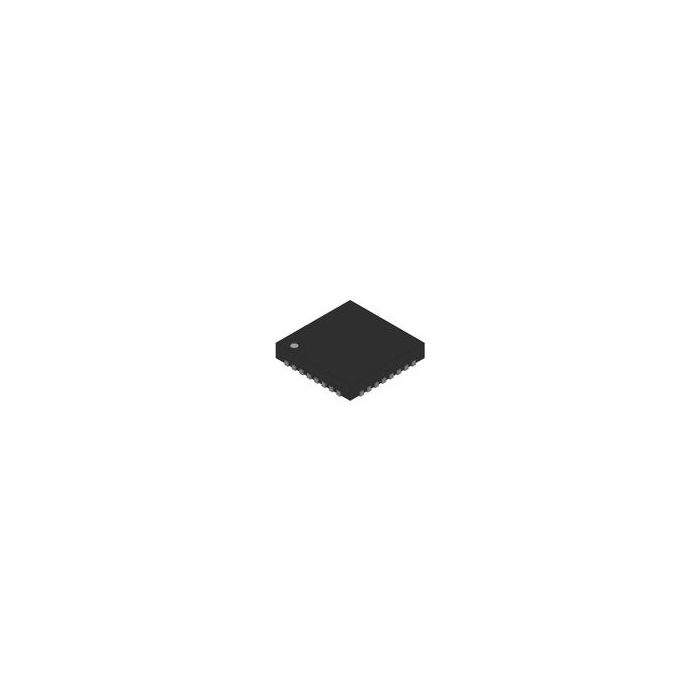

1-Channel Single ADC SAR 10Msps 18-bit Serial LVDS 32-Pin QFN EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • PCNs 9
  • MaskPart LTC2386IUH18#PBF%
  • IntroductionDate Jan 04, 2016

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.9LSB
  • Digital Interface Type Serial LVDS
  • Digital Supply Support No
  • Full Scale Error ±160LSB
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage ±4.096V
  • Integral Nonlinearity Error ±1.75LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 113
  • Maximum Single Supply Voltage (V) 2.625/5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.375/4.75
  • No Missing Codes (bit) 18
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 18bit
  • Sample and Hold No
  • Sampling Rate 10Msps
  • Signal to Noise Ratio 96.2dB(Typ)
  • Single-Ended Input No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 97
  • Typical Single Supply Voltage (V) 2.5/5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 10Msps 18-bit Serial LVDS 32-Pin QFN EP Tube
