LTC2226CUH#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC2226CUH#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC2226CUH#PBF

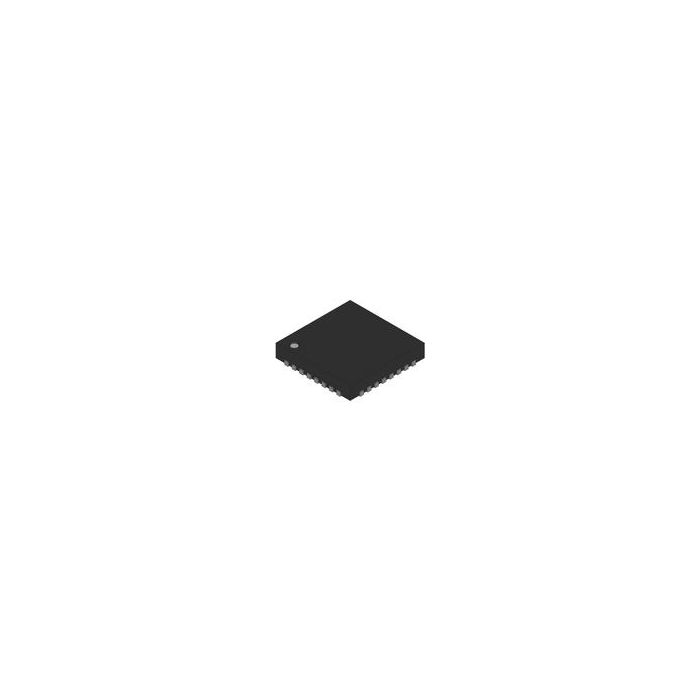

1-Channel Single ADC Pipelined 25Msps 12-bit Parallel 32-Pin QFN EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 186
  • Inventory 3
  • PCNs 9
  • MaskPart LTC2226CUH#PBF%
  • IntroductionDate Sep 07, 2004

Parametry

  • Architecture Pipelined
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.7LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±2.5%FSR
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage ±0.5V/±1V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Positive Supply Voltage (V) 3.6
  • Maximum Power Dissipation (mW) 90
  • Maximum Single Supply Voltage (V) 3.4
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Positive Supply Voltage (V) 2.7
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) 12
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 25Msps
  • Signal to Noise Ratio 71.4dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 75
  • Typical Single Supply Voltage (V) 3
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Pipelined 25Msps 12-bit Parallel 32-Pin QFN EP Tube
