LTC1928ES6-5#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC1928ES6-5#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC1928ES6-5#TRPBF

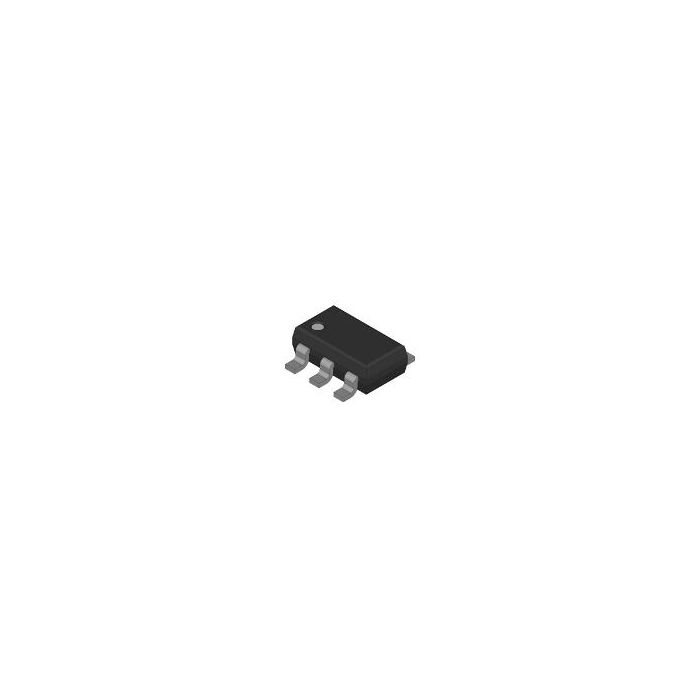

Charge Pump STPUP 5V 30mA 6-Pin TSOT-23 T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 283
  • Inventory 5*
  • PCNs 9
  • MaskPart LTC1928ES65#PBF%
  • IntroductionDate Jun 25, 2001

Parametry

  • Efficiency (%) N/A
  • Function Step Up
  • Maximum Operating Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 0.33
  • Minimum Operating Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Output Current (mA) 30(Max)
  • Output Type Fixed
  • Output Voltage (V) 5
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 620
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump STPUP 5V 30mA 6-Pin TSOT-23 T/R
