LTC1850IFW#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC1850IFW#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC1850IFW#PBF

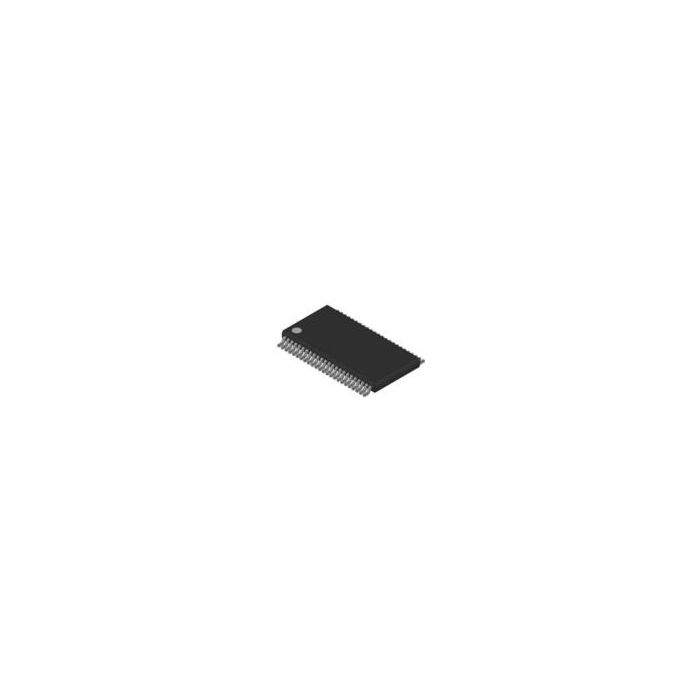

8-Channel Single ADC SAR 1.25Msps 10-bit Parallel 48-Pin TSSOP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 16
  • PCNs 11
  • MaskPart LTC1850IFW#PBF%
  • IntroductionDate Feb 01, 2002

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.5LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±4LSB
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2.048V/4.096V|±1.024V/±2.048V
  • Integral Nonlinearity Error ±0.5LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 50
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) 10
  • Number of ADCs 1
  • Number of Input Channels 8|4
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 1.25Msps
  • Signal to Noise Ratio 61.7dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 40
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal|External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 8-Channel Single ADC SAR 1.25Msps 10-bit Parallel 48-Pin TSSOP Tube
