LTC1408IUH#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC1408IUH#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC1408IUH#TRPBF

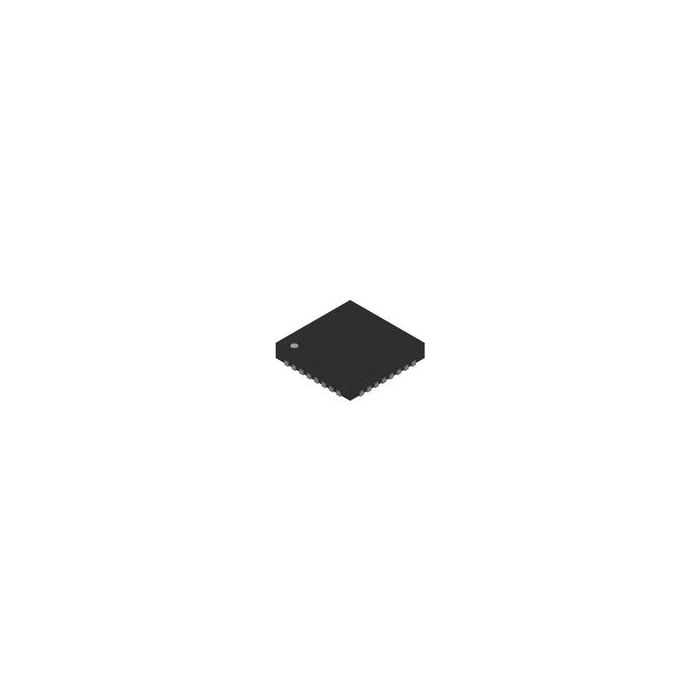

6-Channel Single ADC 600ksps 14-bit Serial 32-Pin QFN EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 5*
  • PCNs 9
  • MaskPart LTC1408IUH#PBF%
  • IntroductionDate Jun 12, 2006

Parametry

  • Architecture N/A
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type Serial (3-Wire, SPI)
  • Digital Supply Support Yes
  • Full Scale Error N/A
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2.5V|±1.25V
  • Integral Nonlinearity Error ±3LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 3.6
  • Maximum Power Dissipation (mW) 100
  • Maximum Single Supply Voltage (V) 3.6
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 2.7
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) 14
  • Number of ADCs 1
  • Number of Input Channels 6
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 14bit
  • Sample and Hold Yes
  • Sampling Rate 600ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 15
  • Typical Single Supply Voltage (V) 3
  • Voltage Reference Internal|External
  • Voltage Supply Source Analog and Digital

Więcej informacji

Do pobrania Download
Main description 6-Channel Single ADC 600ksps 14-bit Serial 32-Pin QFN EP T/R
