LTC1345CSW#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC1345CSW#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC1345CSW#TRPBF

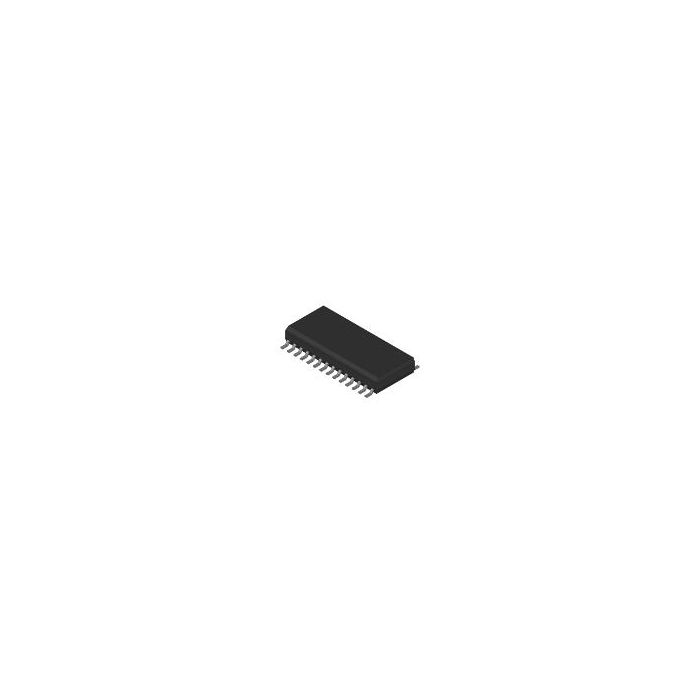

Triple Transmitter/Receiver RS-422/RS-485 28-Pin SOIC W T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • Inventory 3*
  • PCNs 11
  • MaskPart LTC1345CSW#%PBF
  • IntroductionDate Apr 11, 2000

Parametry

  • Channel Operating Mode N/A
  • Charge Pump Yes
  • Data Rate 15MBd
  • Data Transmission Topology Multidrop|Multipoint
  • Driving Mode 3-State
  • External Capacitor Capacitance (uF) 1
  • Fail Safe N/A
  • Function Line Transceiver
  • Input Logic Level TTL
  • Interface Standards V.35
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Single Supply Voltage (V) 5.25
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 170
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 4.75
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 1@RS-422|32@RS-485
  • Number of External Capacitors 3
  • Number of Receiver Enables 1
  • Number of Receivers 3
  • Number of Receivers per Line 10@RS-422|32@RS-485
  • Number of Transceivers 1
  • Number of Transmitter Enables 0
  • Number of Transmitters 3
  • Output Logic Level TTL
  • Power Down Mode Shutdown
  • Power Supply Type Single
  • Receiver Communication Type RS-422|RS-485
  • Receiver Signal Type Differential
  • Supplier Temperature Grade Commercial
  • Transmitter Communication Type RS-422|RS-485
  • Transmitter Signal Type Differential
  • Typical Dual Supply Voltage (V) N/R
  • Typical Shutdown Current (uA) 1
  • Typical Single Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Triple Transmitter/Receiver RS-422/RS-485 28-Pin SOIC W T/R
