LTC1272-3CCN#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LTC1272-3CCN#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LTC1272-3CCN#PBF

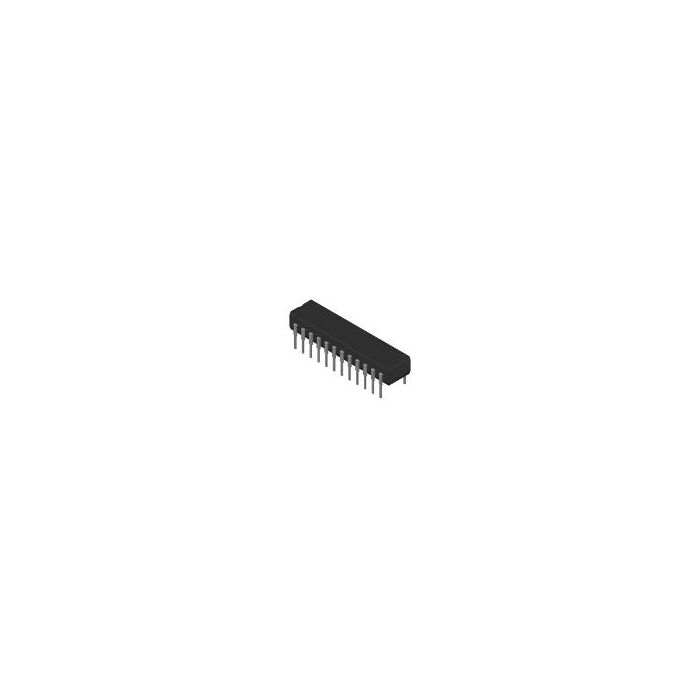

1-Channel Single ADC SAR 250ksps 12-bit Parallel 24-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 523
  • Inventory 3
  • PCNs 13
  • MaskPart LTC12723CCN#PBF%
  • IntroductionDate Feb 08, 1996

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±15LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Positive Supply Voltage (V) 6
  • Maximum Power Dissipation (mW) 500
  • Maximum Single Supply Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Positive Supply Voltage (V) 4.5
  • Minimum Single Supply Voltage (V) N/A
  • No Missing Codes (bit) 12
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 250ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) 75
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference Internal
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 250ksps 12-bit Parallel 24-Pin PDIP N Tube
