LT3845MPFE

ProducentAnalog DevicesEURoHSNo (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LT3845MPFE_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LT3845MPFE

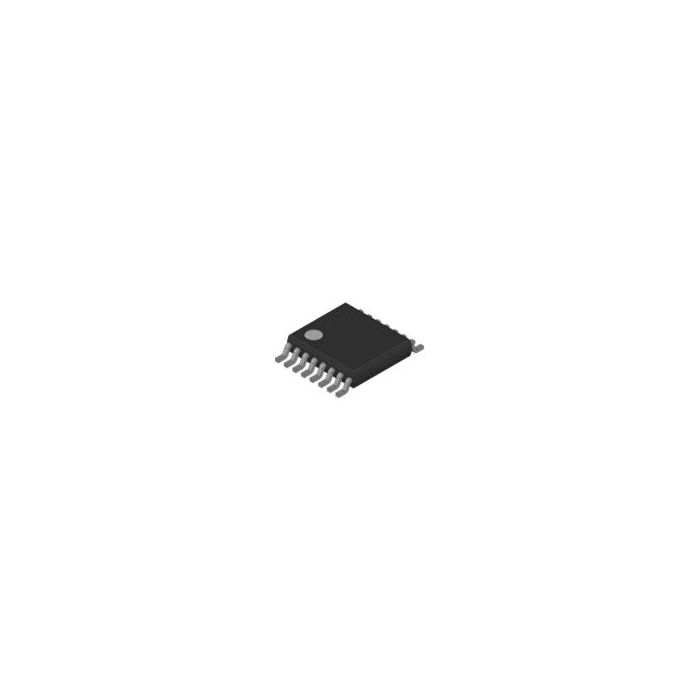

DC/DC Cntrlr Single-OUT Step Down 500kHz Automotive 16-Pin TSSOP EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 447
  • Inventory 1
  • PCNs 10
  • MaskPart LT3845MPFE%
  • IntroductionDate Nov 08, 2006

Parametry

  • Maximum Input Voltage (V) 60
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 0.02(Typ)
  • Maximum Switching Frequency (kHz) 500
  • Minimum Input Voltage (V) 4
  • Minimum Operating Temperature (°C) -55
  • Minimum Switching Frequency (kHz) 100
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4 to 60
  • Output Voltage (V) N/A
  • Supplier Temperature Grade Military
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) N/A
  • Typical Gate Driver Pull Up Resistance (Ohm) N/A
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A
  • Typical Quiescent Current (mA) 0.12

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 500kHz Automotive 16-Pin TSSOP EP Tube
