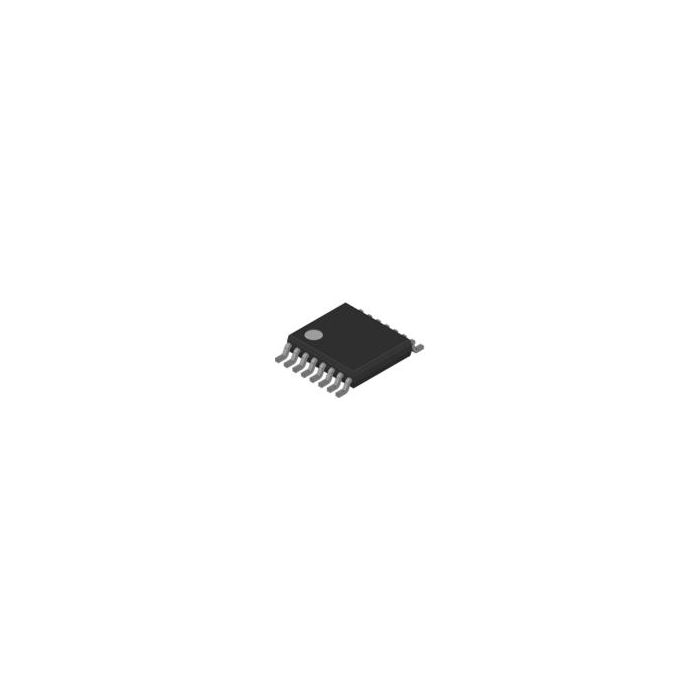

LT3800IFE#PBF
| Do pobrania | Download |
|---|---|
| Main description | Conv DC-DC 4V to 60V Synchronous Step Down Single-Out 36V 15A Automotive 16-Pin TSSOP EP Tube |
Conv DC-DC 4V to 60V Synchronous Step Down Single-Out 36V 15A Automotive 16-Pin TSSOP EP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 25
- Inventory 6
- PCNs 10
- MaskPart LT3800IFE#PBF%
- IntroductionDate Mar 18, 2005
Parametry
- Efficiency (%) N/A
- Isolation Isolated
- Line Regulation N/A
- Load Regulation N/A
- Maximum High Level Output Voltage (V) N/A
- Maximum Input Voltage (V) 60
- Maximum Low Level Output Voltage (V) N/A
- Maximum Output Current (A) 15
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 36(Max)
- Supplier Temperature Grade Industrial
- Switching Frequency (kHz) 210
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Output Resistance (Ohm) N/A
- Typical Quiescent Current (uA) 100
- Typical Switch Current (A) N/A
