LT3741IFE#TRPBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LT3741IFE#TRPBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LT3741IFE#TRPBF

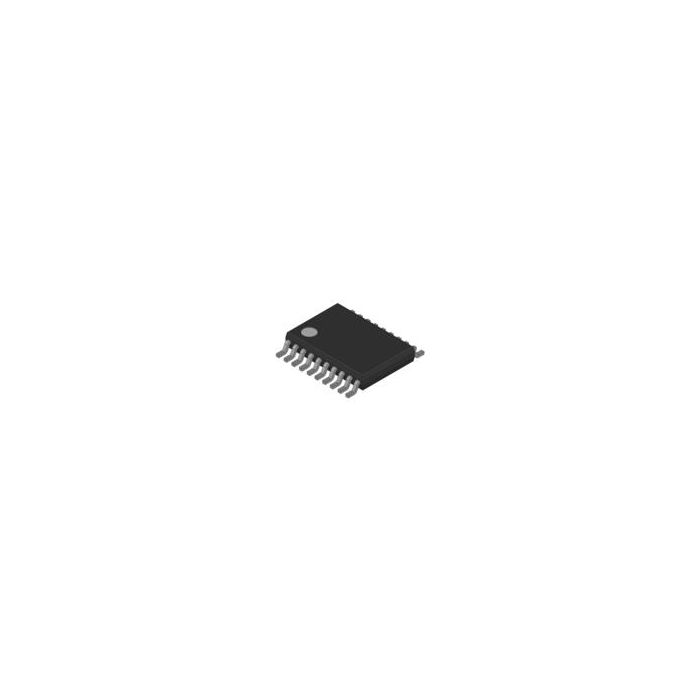

DC/DC Cntrlr Single-OUT Step Down 233kHz Automotive 20-Pin TSSOP EP T/R

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 215
  • Inventory 3*
  • PCNs 10
  • MaskPart LT3741IFE#%PBF
  • IntroductionDate Mar 08, 2010

Parametry

  • Control Method PWM
  • Maximum Input Voltage (V) 36
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) 233
  • Minimum Input Voltage (V) 6
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) N/A
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) 185
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Voltage (V) 0 to 34
  • Programmability Yes
  • Supplier Temperature Grade Industrial
  • Synchronous Clock No
  • Synchronous Rectifier No
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 1.3/1
  • Typical Gate Driver Pull Up Resistance (Ohm) 2.3/2.3
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 20
  • Typical Quiescent Current (mA) 0.8
  • Typical Switching Frequency (kHz) 200

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 233kHz Automotive 20-Pin TSSOP EP T/R
