LT3434EFE#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
LT3434EFE#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LT3434EFE#PBF

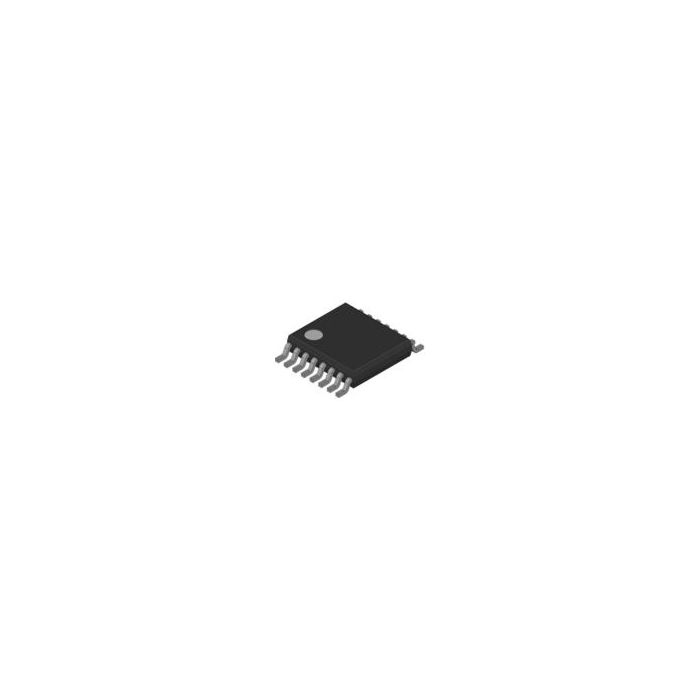

Conv DC-DC 2.4V to 60V Step Down Single-Out 1.25V to 54V 6.5A Automotive 16-Pin TSSOP EP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 24
  • Inventory 5
  • PCNs 10
  • MaskPart LT3434EFE#PBF%
  • IntroductionDate Nov 23, 2004

Parametry

  • Efficiency (%) N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 60
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 6.5
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.4
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 1.25 to 54
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 230
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 3200

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.4V to 60V Step Down Single-Out 1.25V to 54V 6.5A Automotive 16-Pin TSSOP EP Tube
