LT1675CGN#PBF
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- LT1675CGN#PBF_ANALOG_DEVICES
0,00 zł
Opis / LT1675CGN#PBF

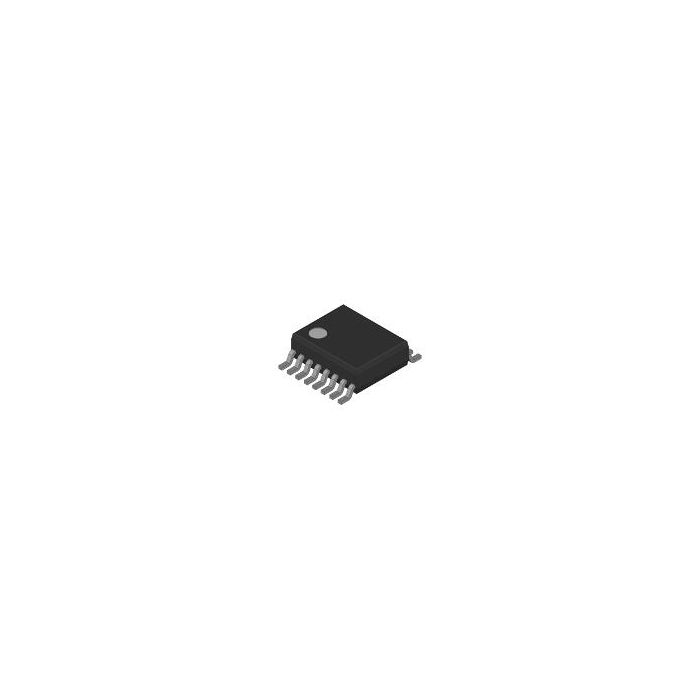

Analog Multiplexer/Amp Triple 2:1 16-Pin SSOP N Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 23
- Inventory 5
- PCNs 9
- MaskPart LT1675CGN#PBF%
- IntroductionDate Apr 20, 2000
Parametry
- Chip Enable Signals Yes
- Configuration Triple 2:1
- Function Video Multiplexer
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±6
- Maximum Frequency (25°C) @ Vcc (MHz) 250(Typ)@±5V
- Maximum High Level Output Current (mA) 70(Typ)
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) N/A
- Maximum On Resistance Range (Ohm) N/A
- Maximum Power Dissipation (mW) 300
- Maximum Propagation Delay Bus to Bus (ns) 3(Typ)@±5V
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) 42@±5V@0C to 70C
- Maximum Turn-Off Time (ns) 100(Typ)@±5V
- Maximum Turn-On Time (ns) 10(Typ)@±5V
- Minimum Dual Supply Voltage (V) ±4
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture 2:1
- Number of Channels per Chip 3
- Number of Inputs per Chip 6
- Number of Outputs per Chip 3
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Commercial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer/Amp
- Typical Dual Supply Voltage (V) ±5
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) 33@±5V@0C to 70C
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer/Amp Triple 2:1 16-Pin SSOP N Tube |
