LT1521IST-3.3

ProducentLinear TechnologyEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LT1521IST-3.3_LINEAR_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LT1521IST-3.3

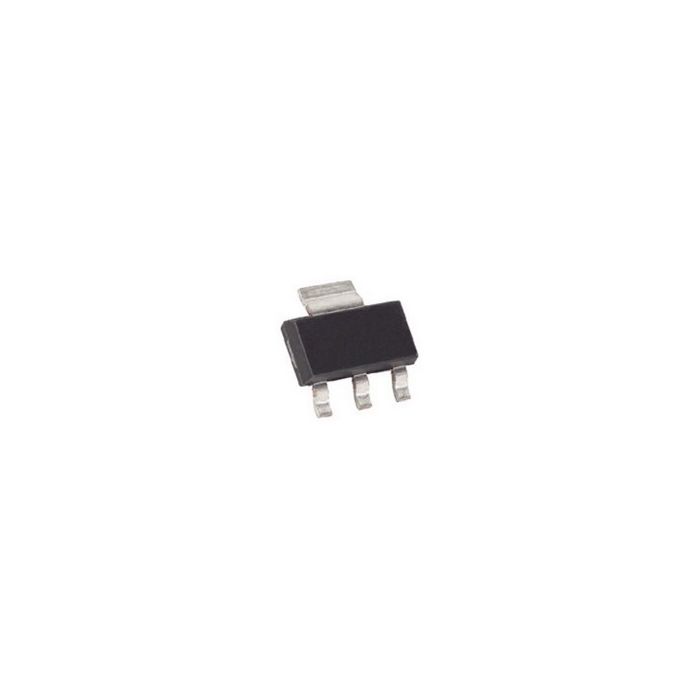

LDO Regulator Pos 3.3V 0.3A 4-Pin(3+Tab) SOT-223

Informacje podstawowe

  • ProducentLinear Technology
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 82
  • Inventory 1
  • PCNs 1
  • MaskPart LT1521IST3.3%
  • IntroductionDate Jan 27, 1999

Parametry

  • Accuracy (%) N/A
  • Junction to Ambient 50°C/W
  • Junction to Case N/A
  • Line Regulation 20mV
  • Load Regulation -30mV
  • Maximum Dropout Voltage @ Current (V) 0.17@1mA|0.6@300mA|0.47@150mA|0.42@100mA|0.35@50mA
  • Maximum Input Voltage (V) 20
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.3
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Minimum Input Voltage (V) -20
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade Industrial
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.13@1mA|0.5@300mA|0.4@150mA|0.35@100mA|0.29@50mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.012

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3.3V 0.3A 4-Pin(3+Tab) SOT-223
