LT1204CN#PBF
ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- LT1204CN#PBF_ANALOG_DEVICES
0,00 zł
Opis / LT1204CN#PBF

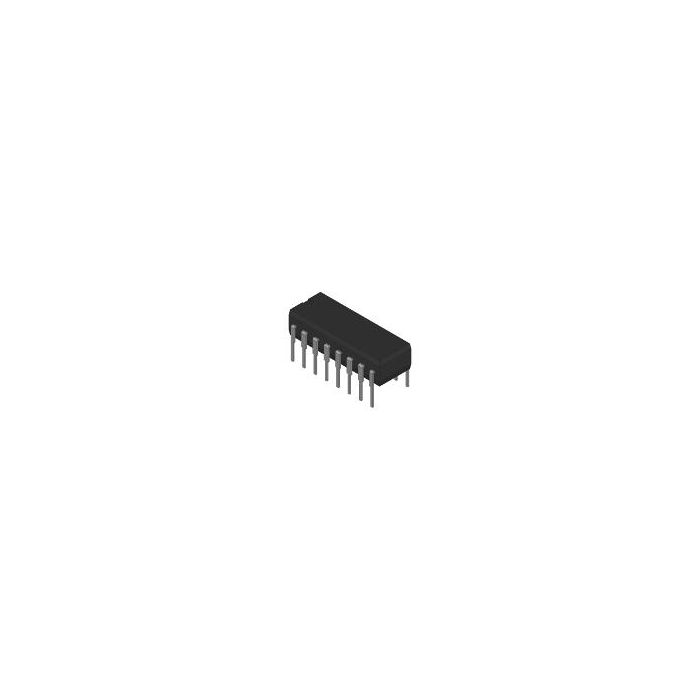

Analog Multiplexer/Amp Single 4:1 16-Pin PDIP N Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 8
- PCNs 11
- MaskPart LT1204CN#PBF%
- IntroductionDate Dec 13, 1999
Parametry
- Chip Enable Signals Yes
- Configuration Single 4:1
- Function Video Multiplexer
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) ±15
- Maximum Frequency (25°C) @ Vcc (MHz) 95.6@±15V|90.2@±12V|68.2@±5V
- Maximum High Level Output Current (mA) 125
- Maximum Low Level Output Current (mA) 35
- Maximum On Resistance (Ohm) N/A
- Maximum On Resistance Range (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) 24@±15V@0C to 70C
- Maximum Turn-Off Time (ns) 100@±15V
- Maximum Turn-On Time (ns) 200@±15V
- Minimum Dual Supply Voltage (V) ±5
- Minimum Single Supply Voltage (V) N/R
- Multiplexer Architecture 4:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 4
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Dual
- Propagation Delay Test Condition (pF) N/A
- Special Features Make-Before-Break
- Supplier Temperature Grade Commercial
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer/Amp
- Typical Dual Supply Voltage (V) ±9|±12
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) 19@±15V@0C to 70C
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer/Amp Single 4:1 16-Pin PDIP N Tube |
