LT1032IN#PBF

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LT1032IN#PBF_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / LT1032IN#PBF

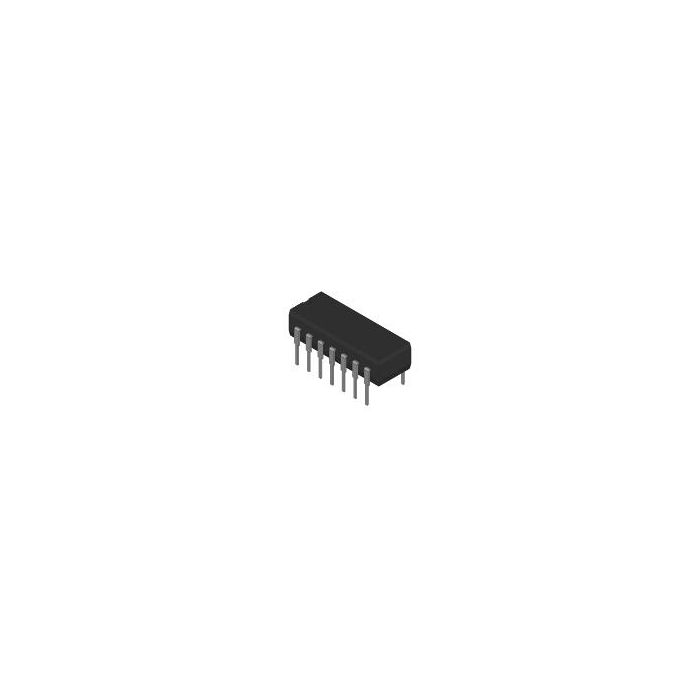

Quad Transmitter RS-232/RS-423 14-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 12
  • Inventory 3
  • PCNs 11
  • MaskPart LT1032IN#PBF%
  • IntroductionDate Sep 15, 1999

Parametry

  • Channel Operating Mode N/A
  • Charge Pump No
  • Data Rate N/A
  • Data Transmission Topology Point-to-Point|Multidrop
  • Driving Mode No
  • External Capacitor Capacitance (uF) N/R
  • Fail Safe N/A
  • Function Line Transmitter
  • Input Logic Level TTL|CMOS
  • Interface Standards RS-232|RS-423
  • Maximum Dual Supply Voltage (V) ±15
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 1
  • Minimum Dual Supply Voltage (V) ±5
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) N/R
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 1
  • Number of External Capacitors N/R
  • Number of Receiver Enables N/R
  • Number of Receivers N/R
  • Number of Receivers per Line N/R
  • Number of Transceivers N/R
  • Number of Transmitter Enables 0
  • Number of Transmitters 4
  • Output Logic Level TTL|CMOS
  • Power Down Mode Shutdown
  • Power Supply Type Dual
  • Receiver Communication Type N/A
  • Receiver Signal Type N/R
  • Supplier Temperature Grade Industrial
  • Transmitter Communication Type RS-232|RS-423
  • Transmitter Signal Type Single-Ended
  • Typical Dual Supply Voltage (V) ±9|±12
  • Typical Shutdown Current (uA) N/A
  • Typical Single Supply Voltage (V) N/R

Więcej informacji

Do pobrania Download
Main description Quad Transmitter RS-232/RS-423 14-Pin PDIP N Tube
