LPC1115FBD48/303,1
| Do pobrania | Download |
|---|---|

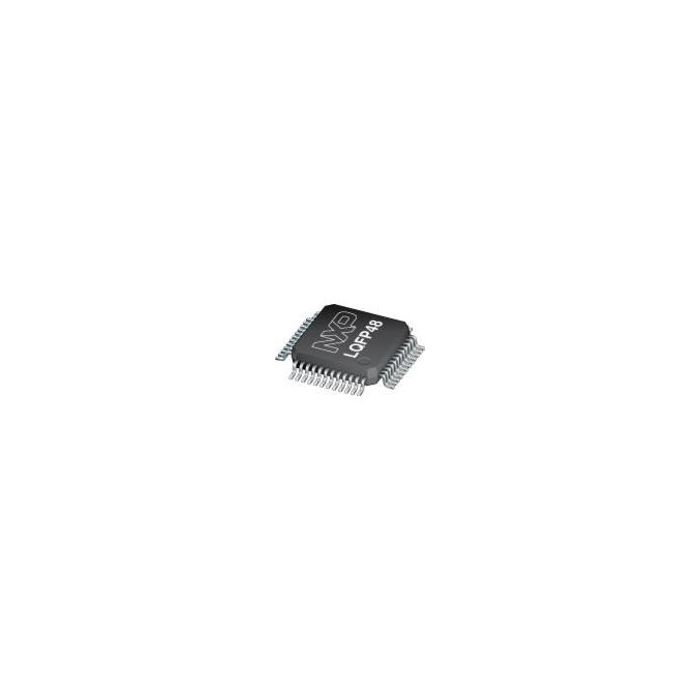

| Main description | MCU 32-bit ARM Cortex M0 RISC 64KB Flash 3.3V 48-Pin LQFP Tray |
MCU 32-bit ARM Cortex M0 RISC 64KB Flash 3.3V 48-Pin LQFP Tray
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 914
- Inventory 7
- PCNs 16
- MaskPart LPC1115FBD48303%
- AliasParts 935297262151
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 0
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM Cortex M0
- Display Driver N/A
- Ethernet 0
- Family Name LPC1100
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/UART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 50
- Maximum Clock Rate (MHz) 50
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 1500
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 42
- Number of Timers 4
- PWM N/A
- Program Memory Size 64KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 8KB
- SPI 2
- Special Features N/A
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 1
- USART 0
- USB 0
- Watchdog 1
